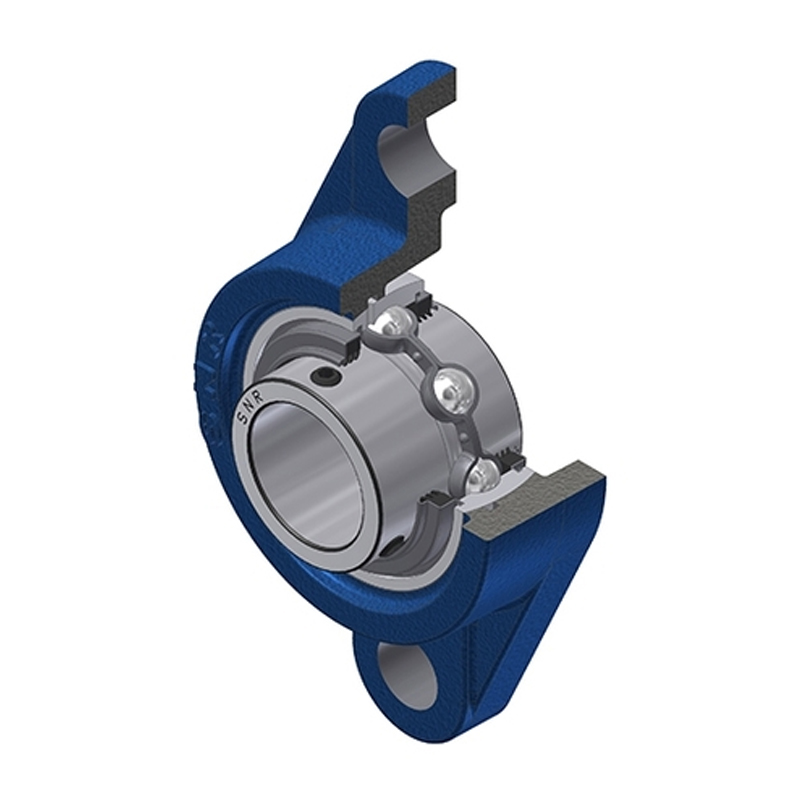

SNR UCFL208L3 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal
£57.64
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £51.30 each |
| 4+ | £48.42 each |
| 9+ | £47.84 each |
| 19+ | £47.27 each |
| 49+ | £46.69 each |
| 99+ | £46.11 each |
| 499+ | £43.23 each |
In Stock
| Dimensions | ||
| Shaft diameter d | = | 40mm |
| A | = | 36mm |
| A1 | = | 14mm |
| A2 | = | 51.2mm |
| B | = | 49.2mm |
| e | = | 21mm |
| H | = | 175mm |
| J | = | 144mm |
| L | = | 100mm |
| N | = | 16mm |
| S | = | 19mm |
| G | = | M6x1 |
| Load rating | ||
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| Unit information | ||
| Operating temperature min. | = | -20°C |
| Operating temperature max. | = | 100°C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.46 kg |
