SNR ESPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
£38.56
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £37.59 each |
| 4+ | £36.63 each |
| 9+ | £35.66 each |
| 19+ | £34.70 each |
| 49+ | £33.74 each |
| 99+ | £32.77 each |
| 499+ | £31.81 each |
| 999+ | £30.84 each |
| 1999+ | £29.88 each |
| 2999+ | £28.92 each |
| 4999+ | £27.95 each |
2-3 Days Availability

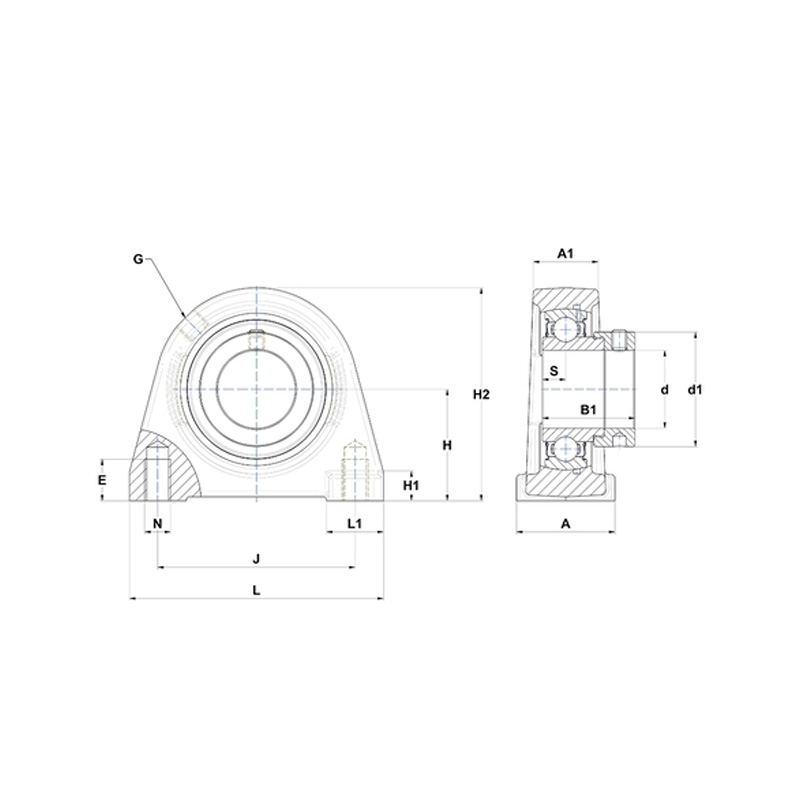

| Dimensions | ||
| Shaft diameter | = | 40mm |
| A | = | 47mm |
| A1 | = | 30mm |
| B | = | 30.2mm |
| d1 | = | 58mm |
| E | = | 15mm |
| H | = | 49.2mm |
| H1 | = | 13mm |
| H2 | = | 99mm |
| J | = | 88.9mm |
| L | = | 116mm |
| L1 | = | 27mm |
| N | = | M12 |
| S | = | 11mm |
| G | = | R1/8" |
| Load rating | ||
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| Operating temperature min. | = | -20°C |
| Operating temperature max. | = | 100°C |
| Unit information | ||
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.65 kg |
