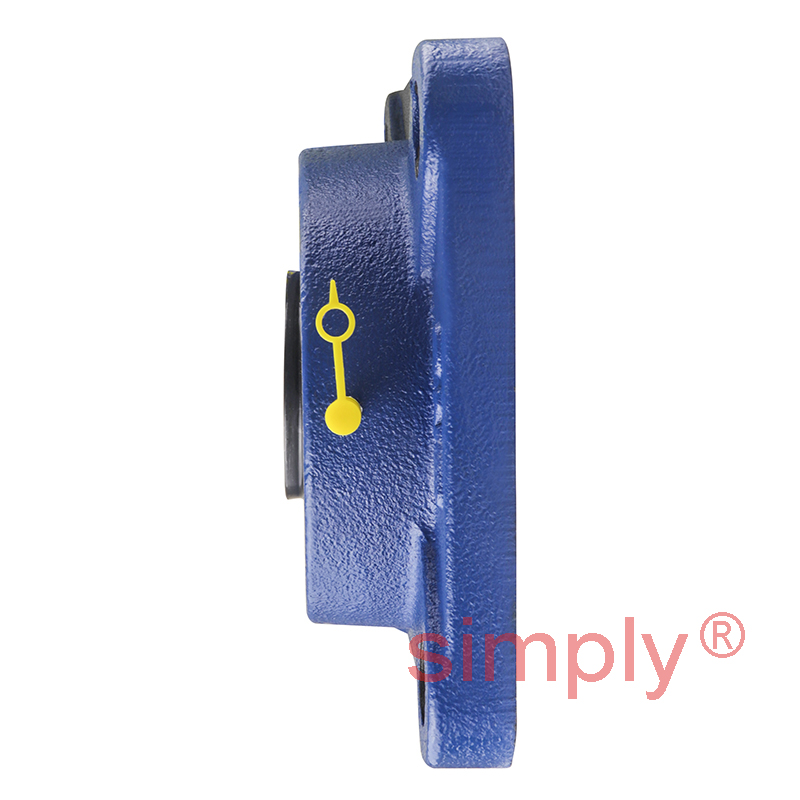

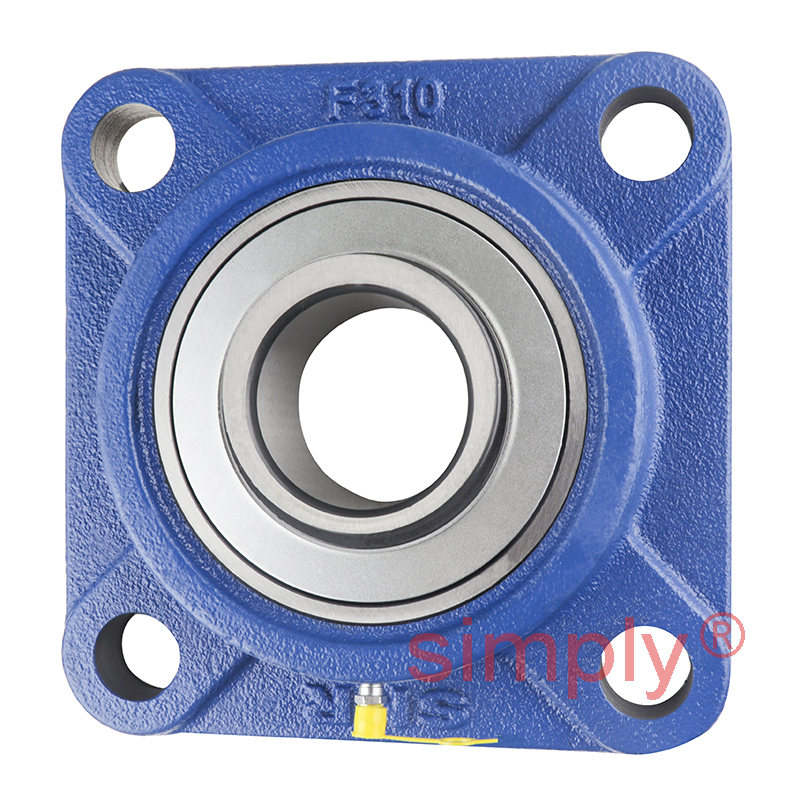

SNR EXF310 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert
£86.75
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £77.21 each |
| 4+ | £72.87 each |
| 9+ | £72.00 each |
| 19+ | £71.14 each |
| 49+ | £70.27 each |
| 99+ | £69.40 each |
| 499+ | £65.06 each |
| 999+ | £64.20 each |
| 1999+ | £63.33 each |
| 2999+ | £62.46 each |
| 4999+ | £60.73 each |
In Stock
| Dimensions | ||
| Shaft diameter d | = | 50mm |
| A | = | 48mm |
| A1 | = | 20mm |
| A2 | = | 70mm |
| B | = | 49.2mm |
| B1 | = | 66.6mm |
| d1 | = | 76.2mm |
| e | = | 28mm |
| J | = | 132mm |
| L | = | 175mm |
| N | = | 23mm |
| S | = | 24.6mm |
| G | = | M6x1 |
| Load rating | ||
| Dynamic load C | = | 62 kN |
| Static load C0 | = | 37.8 kN |
| Unit information | ||
| Operating temperature min. | = | -20°C |
| Operating temperature max. | = | 100°C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 4.56 kg |
