SNR UC211G2T20 Metric Full Width Spherical Outer High Temp Bearing Insert 55mm Bore 100mm Outside Diameter with Grub Screws - Allow 2-3 Days
- Wide range availability
- Interchangeable with other brands
- Quality products for ISO and JIS housing ranges
- G2 inserts are universal which allows for reversed installation
£88.60
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £87.71 each |
| 10+ | £84.17 each |
| 20+ | £82.40 each |
| 50+ | £79.74 each |
| 100+ | £77.97 each |
| 500+ | £73.54 each |
| 1000+ | £62.02 each |
2-3 Days Availability

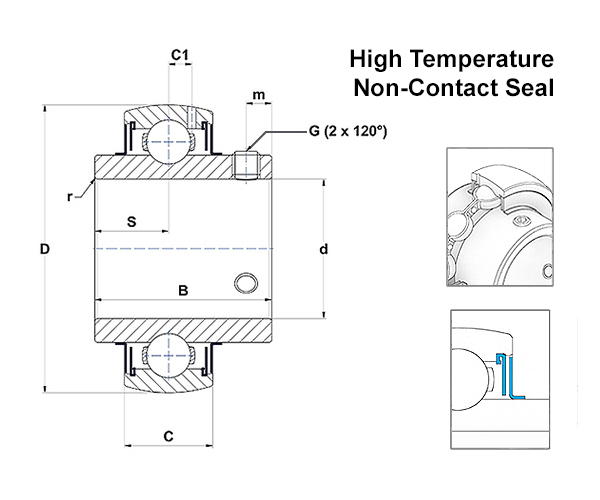

| d | = | 55mm |
| D | = | 100mm |
| C | = | 25mm |
| B | = | 55.6mm |
| S | = | 22.2mm |
| m | = | 9mm |
| C1 | = | 7.2mm |
| r min | = | 1.1mm |
| G | = | M10x1.25 |
| Wrench Size | = | 5mm |
| Set screw torque | = | 22 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 200 deg C |
| Dynamic load rating C | = | 43.6kN |
| Static load rating C0 | = | 29.2kN |
| Weight | = | 1.1kg |
