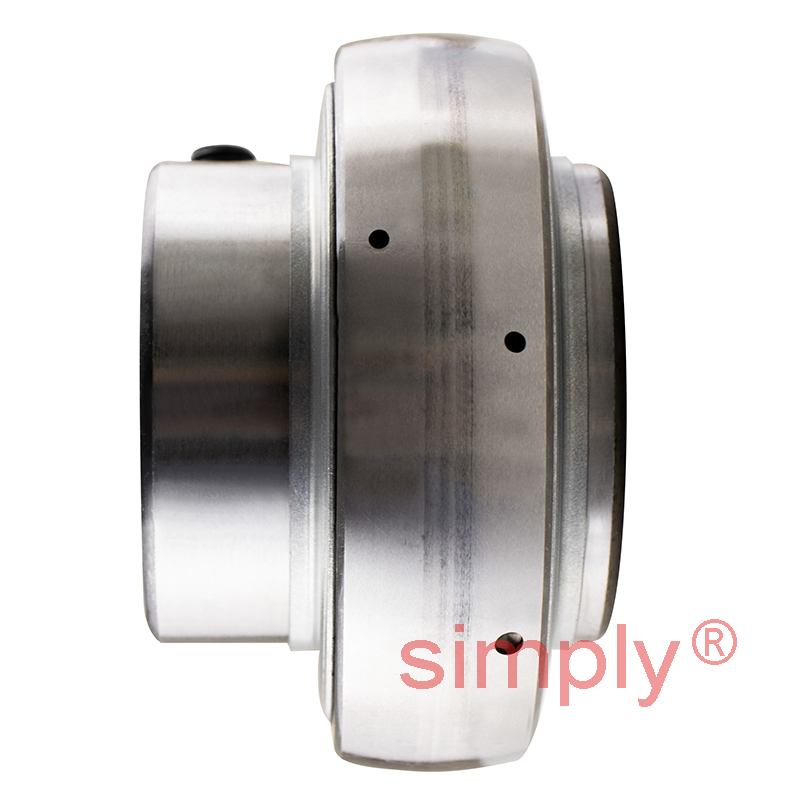

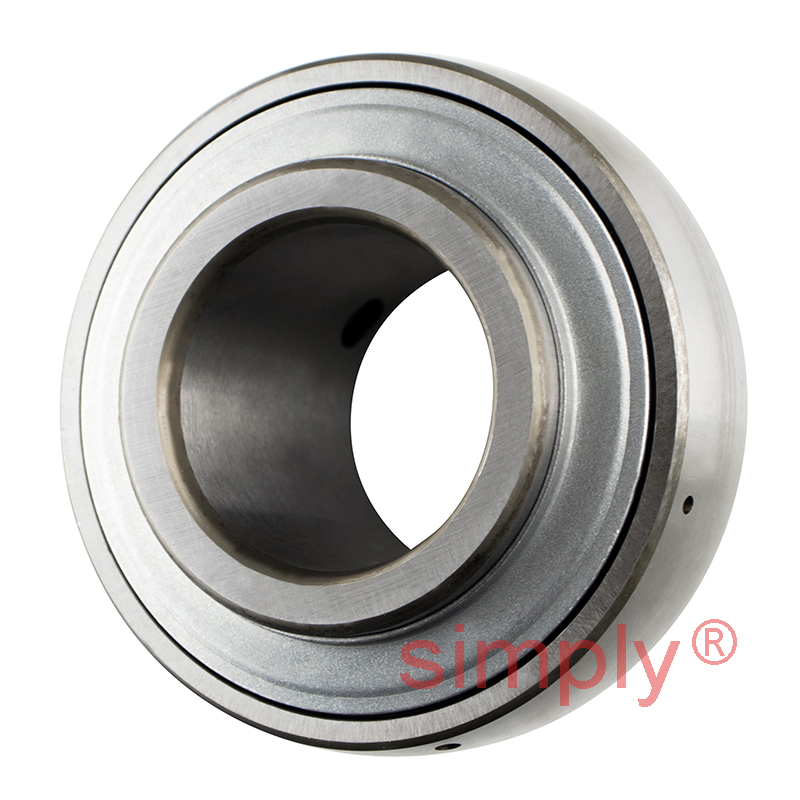

SNR UC208-24G2 Imperial Full Width Spherical Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws
- Wide range availability
- Interchangeable with other brands
- Quality products for ISO and JIS housing ranges
- G2 inserts are universal which allows for reversed installation
Equivalent to: 1040-1-1/2G
£39.86
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £35.48 each |
| 5+ | £33.48 each |
| 9+ | £33.08 each |
| 19+ | £32.69 each |
| 49+ | £32.29 each |
| 74+ | £31.89 each |
| 99+ | £29.90 each |
In Stock
| d | = | 1-1/2 inch |
| d | = | 38.1mm |
| D | = | 80mm |
| C | = | 21mm |
| B | = | 49.2mm |
| S | = | 19mm |
| m | = | 8mm |
| C1 | = | 6.3mm |
| r min | = | 1.1mm |
| G | = | 5/16-24UNF |
| Wrench Size | = | 5/32 inch |
| Set screw torque | = | 8 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 29.6kN |
| Static load rating C0 | = | 18.2kN |
| Weight | = | 0.7kg |
