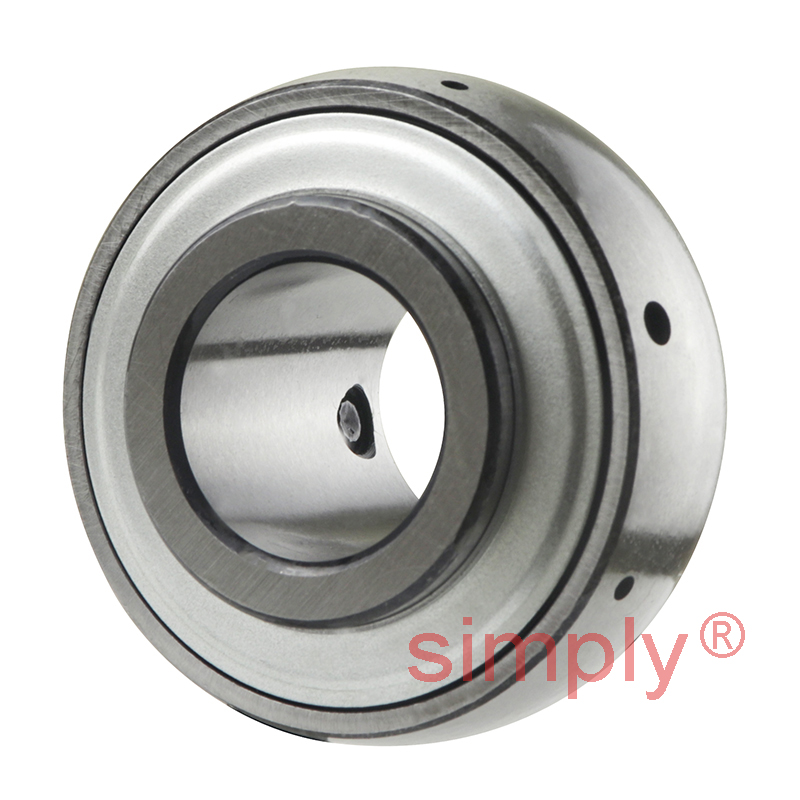

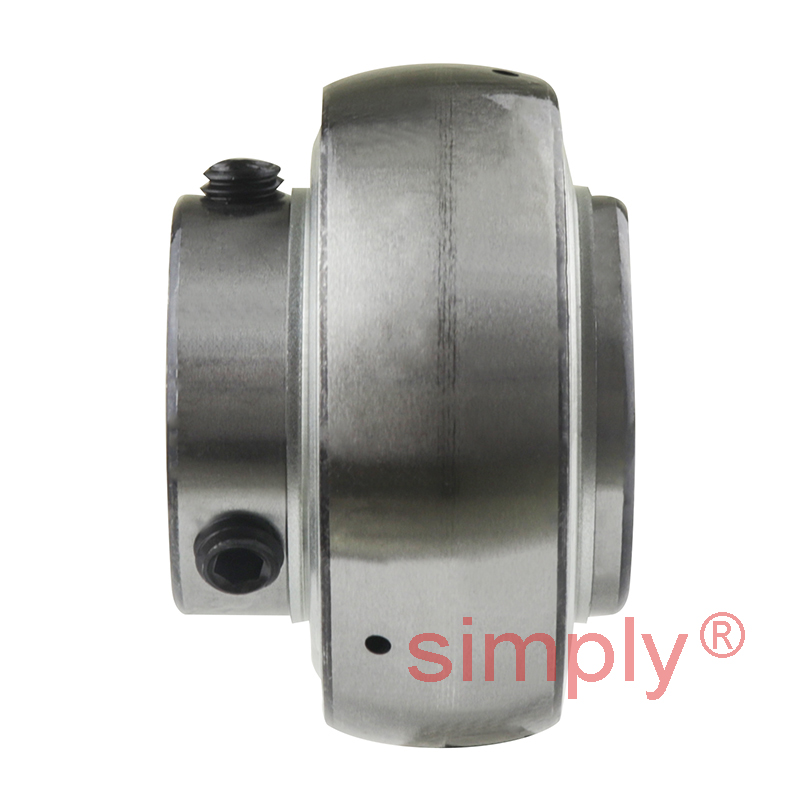

SNR US204G2 Metric Flatback Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Grub Screws
- Wide range availability
- Interchangeable with other brands
- Quality products for ISO and JIS housing ranges
- G2 inserts are universal which allows for reversed installation
Equivalent to: SB204
£12.11
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £10.78 each |
| 5+ | £10.17 each |
| 9+ | £10.05 each |
| 19+ | £9.93 each |
| 49+ | £9.81 each |
| 74+ | £9.69 each |
| 99+ | £9.08 each |
| 199+ | £8.96 each |
| 249+ | £8.84 each |
| 499+ | £8.72 each |
| 999+ | £8.48 each |
In Stock
| d | = | 20mm |
| D | = | 47mm |
| C | = | 14mm |
| B | = | 25mm |
| S | = | 7mm |
| m | = | 5mm |
| C1 | = | 4mm |
| r min | = | 0.6mm |
| G | = | M6x1 |
| Wrench Size | = | 3mm |
| Set screw torque | = | 5.5 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 12.8kN |
| Static load rating C0 | = | 6.7kN |
| Weight | = | 0.1kg |
