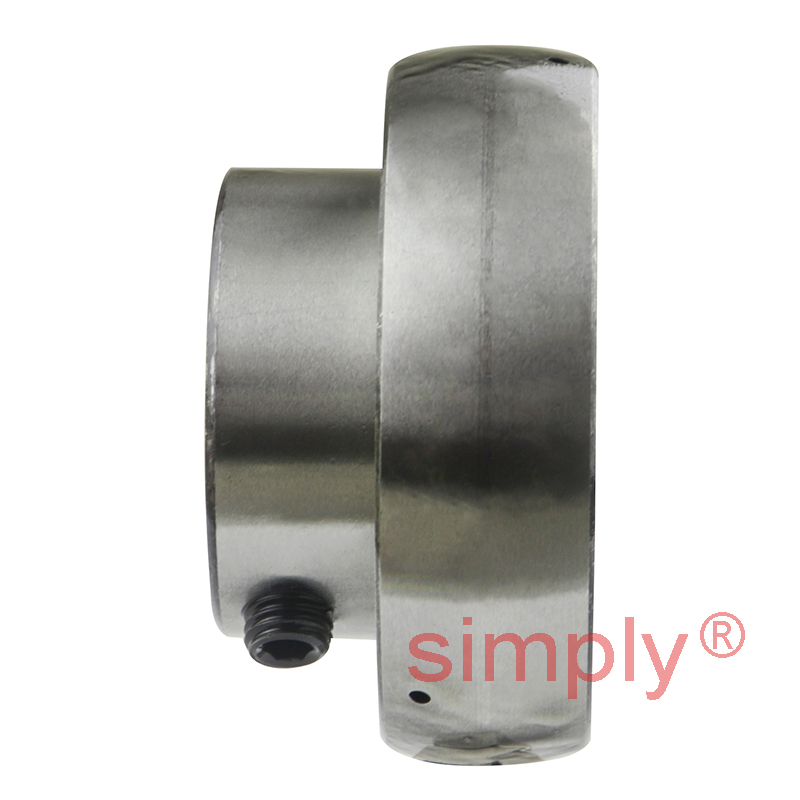

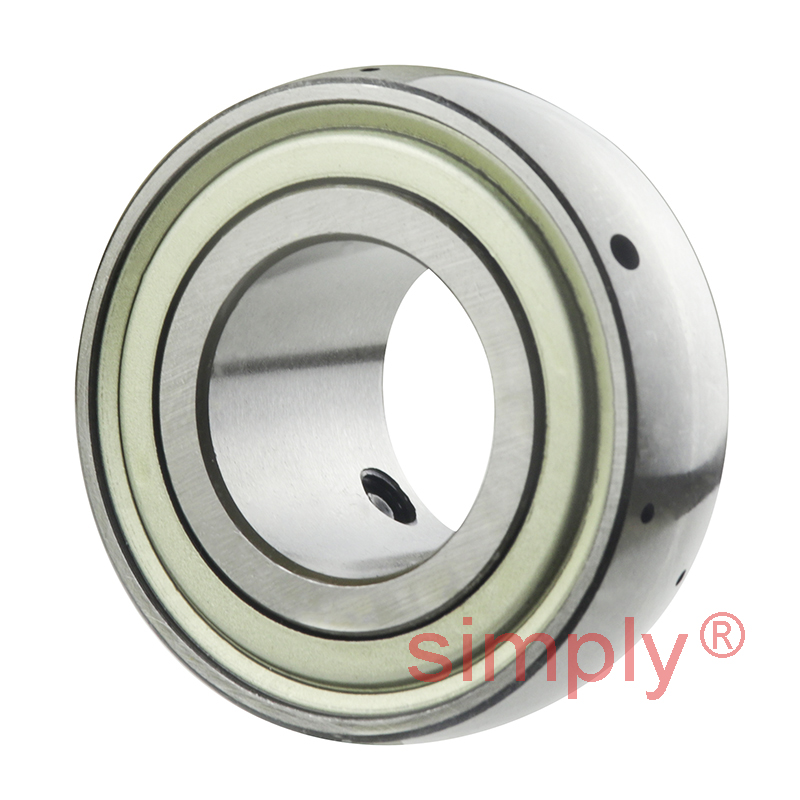

SNR US205-16G2 Imperial Flatback Spherical Outer Bearing Insert 1 inch Bore 52mm Outside Diameter with Grub Screws
- Wide range availability
- Interchangeable with other brands
- Quality products for ISO and JIS housing ranges
- G2 inserts are universal which allows for reversed installation
Equivalent to: SB205-16
£13.23
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £11.77 each |
| 5+ | £11.11 each |
| 9+ | £10.98 each |
| 19+ | £10.85 each |
| 49+ | £10.72 each |
| 74+ | £10.58 each |
| 99+ | £9.92 each |
| 199+ | £9.79 each |
| 249+ | £9.66 each |
| 499+ | £9.53 each |
| 999+ | £9.26 each |
In Stock
| d | = | 1 inch |
| d | = | 25.4mm |
| D | = | 52mm |
| C | = | 15mm |
| B | = | 27mm |
| S | = | 7.5mm |
| m | = | 5.5mm |
| C1 | = | 4.3mm |
| r min | = | 0.6mm |
| G | = | 1/4-28UNF |
| Wrench Size | = | 1/8 inch |
| Set screw torque | = | 3.7 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 14kN |
| Static load rating C0 | = | 7.9kN |
| Weight | = | 0.2kg |
