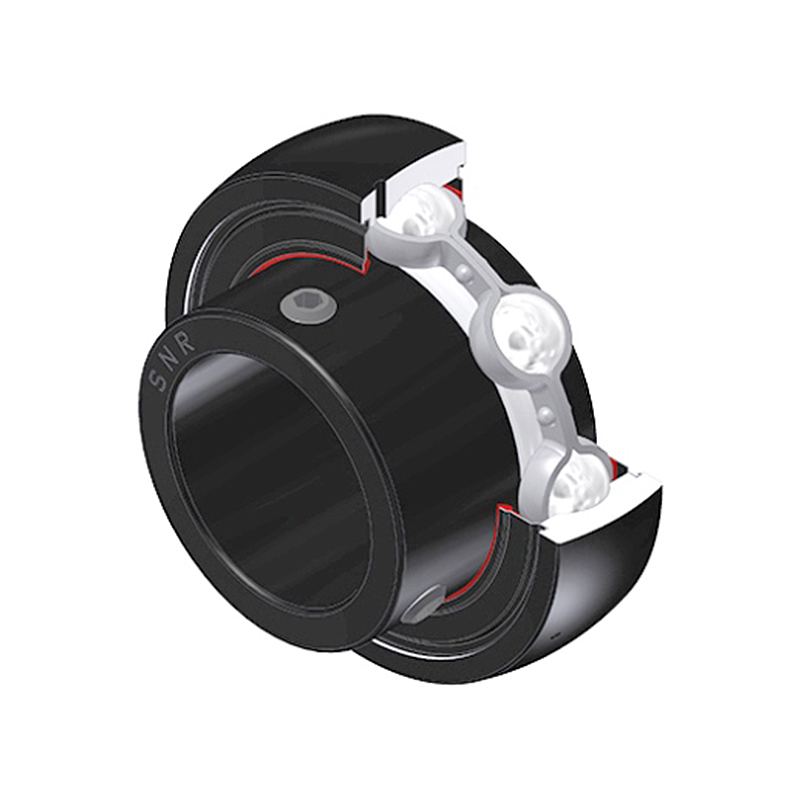

SNR US-T20 Flatback Spherical Outer High Temp Bearing Insert with Grub Screws: This bearing insert is tailored for high-temperature applications, ensuring optimal performance in demanding environments. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It incorporates a zinc-coated sheet steel retainer over-molded with NBR, boasting an axially preloaded seal lip and a preconnected, zinc-coated sheet steel slinger for enhanced protection against mechanical impacts. Additionally, it is black-oxide-coated with increased internal clearance, enabling permanent operation at temperatures up to +200°C. Designed for high-temperature use under normal environmental conditions, this insert supports medium to high rotation speeds, ensuring reliable performance in challenging heat-intensive settings. Benefits: High-quality brand, high-performance, high temperature
Brand / Quality: SNR - High Quality Thread Size: 5/16-24UNF Inside Diameter: 50.8mm = 2 inch Outside Diameter: 100mm Width: 45.3mm Temperature Range: High Temp Style: US

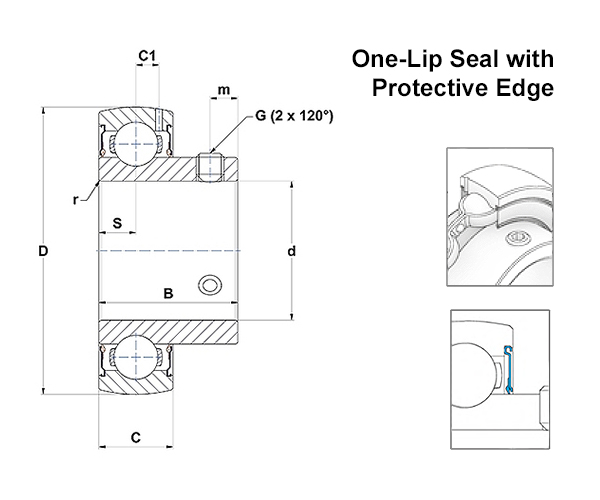

d
=
2 inch
d
=
50.8mm
D
=
100mm
C
=
23mm
B
=
45.3mm
S
=
11.8mm
m
=
9.8mm
C1
=
7.2mm
r min
=
1.1mm
G
=
5/16-24UNF
Wrench Size
=
5/32 inch
Set screw torque
=
8 Nm
Min Temp
=
-20 deg C
Max Temp
=
200 deg C
Dynamic load rating C
=
43.55kN
Static load rating C0
=
29.2kN
Weight
=
1.1kg
US
=
Bearing insert with spherical outer ring, narrow inner ring and set screw type with flinger
211-32
=
Bearing insert number
G2
=
SNR 2-planes re-greasing system with 4 grease bores in the outer ring
T20
=
Bearing insert for hot environments (up to + 200 Deg C)
