PC14M-56S-20 - 14mm Pitch 56 Tooth Polychain and Synchrochain Steel Taper Bore Timing Belt Pulley for 20mm Wide Belts
- High quality brand
- High power output
- Cost-effective solution
Equivalent to: Polychain 14M-56S-20 / Synchrochain 56-C14M-20
£162.58
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £144.69 each |
| 5+ | £136.57 each |
| 9+ | £134.94 each |
| 19+ | £133.31 each |
| 49+ | £131.69 each |
| 74+ | £130.06 each |
| 99+ | £121.93 each |
| 199+ | £120.31 each |
| 249+ | £118.68 each |
| 499+ | £117.06 each |
| 999+ | £113.80 each |
In Stock
| Material | = | Steel |
| No. teeth | = | 56 |

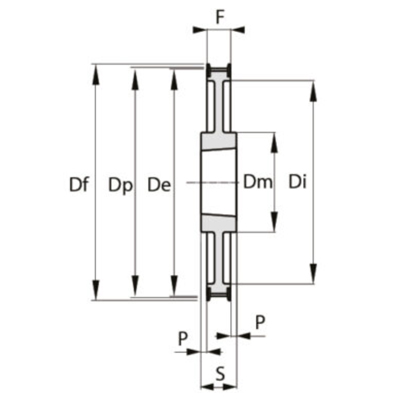

| Schematic Type | = | 9F |
| Bush no. | = | 3020 |
| Belt Width | = | 20mm |
| Max. bore (metric) | = | 75mm |
| Dp | = | 249.55mm |
| De | = | 246.76mm |
| Df | = | 256mm |
| Di | = | 207mm |
| Dm | = | 144mm |
| F | = | 33mm |
| P | = | 9mm |
| S | = | 51mm |
| Weight Kg | = | 12.3 kg |
