NAK 100x115x11.4mm UIP2 Polyurethane Rod Seal - Allow 7-10 Days Simply Bearings Ltd

Limited Availability
Please Enquire

NAK UIP2 Rod Seals: UIP2 rod seals from NAK are high-performance sealing elements featuring an asymmetric dual-lip profile, engineered specifically for hydraulic rod applications. Designed to deliver superior sealing while protecting against contamination. These seals feature a shorter, sturdier inner lip, which enhances stability and contamination control. The outer lip ensures effective dynamic fluid sealing.
Benefits: Enhanced sealing performance, stable groove fit, long service life

Brand / Quality: NAK - High Quality
Inside Diameter: 100mm
Outside Diameter: 115mm
Length: 11.4mm
Material: Polyurethane
Style: UIP2
Colour: Blue
Need FKM Seals?

Click Here

Replacement Rotarty Shaft Seal Springs?

Click Here

Repair Shaft Sleeves?

Click Here

Adhesives?

Click Here

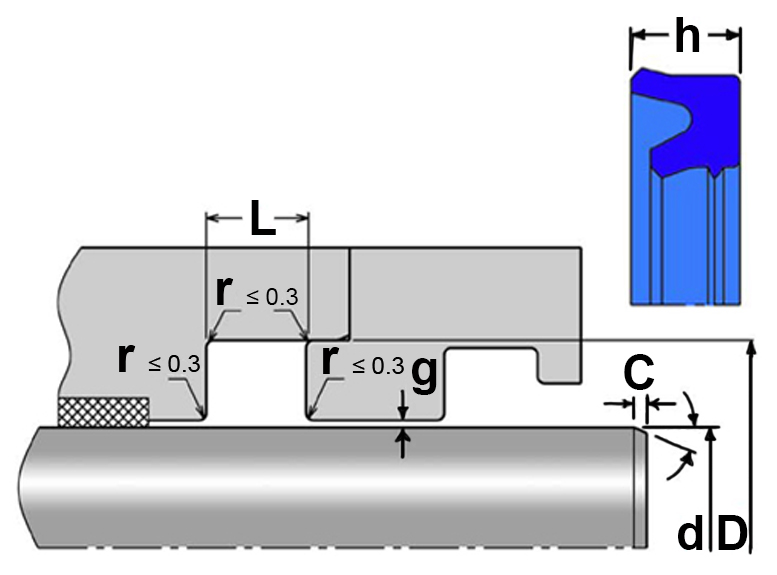

d	=	100mm
D	=	115mm
L	=	12.4mm
h	=	11.4mm
C	=	4mm
Inside Diameter Tolerance	=	f8
Outside Diameter Tolerance	=	H10
Length Tolerance	=	0.2mm
Pressure (max)	=	40 Mpa
Sliding Speed (max)	=	0.5 m/s
Temperature	=	-40 Deg C to +100 Deg C
Colour	=	Blue

NAK Sealing Technologies Corporation is a professional manufacturer specializing in sealing design and production, serving numerous OEM clients from Germany, United States, Japan, and other regions. The product line of NAK encompasses a wide range of seals including, rotary shaft seals, piston seals, hydraulic seals, rod seals, wiper seals, Rings and other seals,catering to diverse applications and needs.
NAK's single packaging oil seal design ensures outstanding performance even after prolonged storage, maintaining stable quality even under extreme conditions such as high temperature, humidity, and pollution. We prioritize product usability with a packaging design that allows for immediate use without the need for additional cleaning.
In order to safeguard customer interests, unique QR codes are integrated into our product packaging, enabling easy authentication. This innovative technology not only provides security assurance for our products but also underscores our commitment to customer trust and satisfaction.
