NTN KR22FLLH/3AS Hex Head Crowned Cam Follower 22x12x10mm M10X1.25 Thread
- High load handling with minimal deformation
- Smooth, low-friction operation
- Durable, wear-resistant construction
£26.48
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £23.57 each |
| 4+ | £22.24 each |
| 9+ | £21.98 each |
| 19+ | £21.71 each |
| 49+ | £21.45 each |
| 99+ | £21.18 each |
| 499+ | £19.86 each |
In Stock

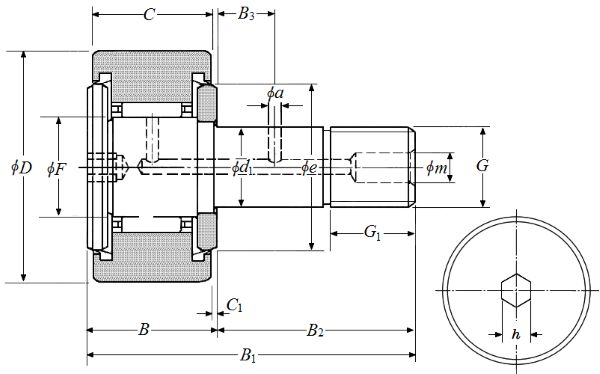

| D - Outside diameter | = | 22mm |
| d1 - Stud diameter | = | 10mm |
| C - Outer ring width | = | 12mm |
| F - Under roller diameter | = | 12mm |
| B - Bearing / Inner ring width | = | 13mm |
| B1 - Total stud length | = | 36mm |
| B2 - Stud rod length | = | 23mm |
| G - Stud thread designation | = | M10X1.25 |
| G1 - Thread length | = | 12mm |
| C1 - Distance between roller and washer face | = | 0.6mm |
| n - Axial lubrication hole diameter | = | 4mm |
| e - Inlet diameter | = | 17mm |
| h - Hexagonal hole diameter | = | 4mm |
| R - Track roller radius | = | 500mm |
| Maximum tightening torque | = | 14 n-m |
| Bearing with/without cage | = | With |
| Radial clearance class | = | CN |
| Precision class | = | P0 |
| Cr - Dynamic load rating | = | 5.3 kN |
| C0r - Static load rating | = | 6.65 kN |
| Track load capacity | = | 1.69 kN |
| N - Grease lubrication limit speed | = | 10000 tr/min |
| Tmin - Minimum operating temperature | = | -20 Deg C |
| Tmax - Maximum operating temperature | = | +100 Deg C |
