NTN NUKR90X/3AS Cylindrical Cam Follower 90x35x30mm M30X1.5 Thread - Allow 2-3 Days
- High load handling with minimal deformation
- Smooth, low-friction operation
- Durable, wear-resistant construction
£155.16
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £153.61 each |
| 10+ | £147.40 each |
| 20+ | £144.30 each |
| 50+ | £139.64 each |
| 100+ | £136.54 each |
| 500+ | £128.78 each |
| 1000+ | £108.61 each |
2-3 Days Availability

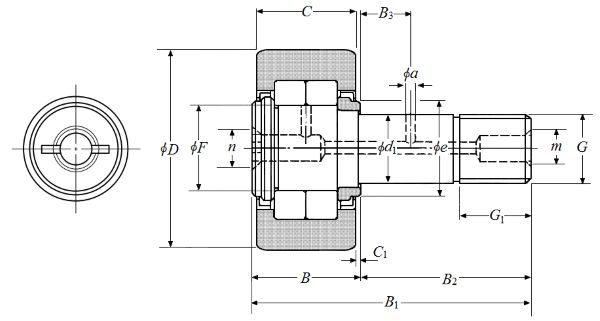

| D - Outside diameter | = | 90mm |
| d1 - Stud diameter | = | 30mm |
| C - Outer ring width | = | 35mm |
| F - Under roller diameter | = | 47.5mm |
| B - Bearing / Inner ring width | = | 37mm |
| B1 - Total stud length | = | 100mm |
| B2 - Stud rod length | = | 63mm |
| G - Stud thread designation | = | M30X1.5 |
| G1 - Thread length | = | 32mm |
| B3 - Distance between face and lubrication hole | = | 15mm |
| C1 - Distance between roller and washer face | = | 1mm |
| n - Axial lubrication hole diameter | = | 8mm |
| a - Radial lubrication hole diameter | = | 4mm |
| e - Inlet diameter | = | 51mm |
| Maximum tightening torque | = | 360 n-m |
| Bearing with/without cage | = | Without |
| Radial clearance class | = | CN |
| Precision class | = | P0 |
| Cr - Dynamic load rating | = | 101 kN |
| C0r - Static load rating | = | 151 kN |
| Cu - Fatigue limit load rating | = | 18.4 kN |
| Track load capacity | = | 59 kN |
| N - Grease lubrication limit speed | = | 2100 tr/min |
| Tmin - Minimum operating temperature | = | -20 Deg C |
| Tmax - Maximum operating temperature | = | +120 Deg C |
