Major Branded VSU200544 Four Point Contact Slewing Ring Bearing 472x616x56mm - Allow 2-3 Days
- Versatile Application Range
- High Load-Bearing Capability
- Compact, Lightweight Design
£953.48
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £848.59 each |
| 5+ | £800.92 each |
| 9+ | £791.38 each |
| 19+ | £781.85 each |
| 49+ | £772.32 each |
| 74+ | £762.78 each |
| 99+ | £715.11 each |
| 199+ | £705.57 each |
| 249+ | £696.04 each |
| 499+ | £686.50 each |
| 999+ | £667.43 each |
2-3 Days Availability

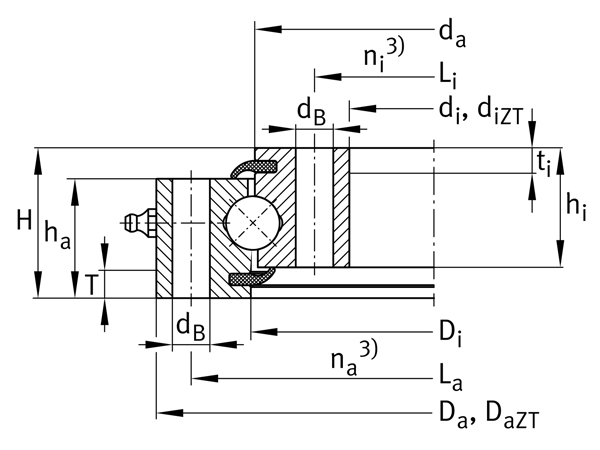

| Main Dimensions & Performance Data | ||
| di - Inner diameter inner ring | = | 472mm |
| Inner diameter inner ring lower tolerance | = | 0mm |
| Inner diameter inner ring upper tolerance | = | 0.5mm |
| H - Height | = | 56mm |
| Da - Outside Diameter | = | 616mm |
| Outside diameter lower tolerance | = | -0.5mm |
| Outside diameter upper tolerance | = | 0mm |
| T - Length centering outer ring | = | 10mm |
| t - Length centering inner ring | = | 10mm |
| ha - Width outer ring | = | 44.5mm |
| hi - Width inner ring | = | 44.5mm |
| Weight | = | 37.41 kg |
| Dimensions | ||
| Di - Inner diameter outer ring | = | 545.5mm |
| Inner diameter outer ring upper tolerance | = | 0.5mm |
| Inner diameter outer ring lower tolerance | = | 0mm |
| da - Outside diameter inner ring | = | 542.5mm |
| Outside diameter inner ring upper tolerance | = | 0mm |
| Outside diameter inner ring lower tolerance | = | -0.5mm |
| dB - Fixing bore | = | 14mm |
| La - Pitchcircle diameter fixing holes outer ring | = | 590mm |
| na - Number of fixing holes in outer ring | = | 32 |
| Li - Pitch circle diameter fixing holes inner ring | = | 498mm |
| ni - Number of fixing holes in inner ring | = | 32 |
| Fr zul - Max. radial load fixing screws (friction locking) | = | 132200 N |
| Temperature Range | ||
| Tmin - Operating temperature min. | = | -25 Deg C |
| Tmax - Operating temperature max. | = | 80 Deg C |
| Calculation Factors | ||
| Ca - Basic dynamic load rating, axial | = | 152000 N |
| C0a - Basic static load rating, axial | = | 870000 N |
| Cr - Basic dynamic load rating, radial (for radial load only) | = | 138000 N |
| C0r - Basic static load rating, radial (for radial load only) | = | 400000 N |
