Major Branded VSI200744N Four Point Contact Slewing Ring Bearing with Internal Gear 648x816x56mm - Allow 2-3 Days
- Versatile Application Range
- High Load-Bearing Capability
- Compact, Lightweight Design
£1437.28
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £1279.18 each |
| 5+ | £1207.32 each |
| 9+ | £1192.94 each |
| 19+ | £1178.57 each |
| 49+ | £1164.20 each |
| 74+ | £1149.83 each |
| 99+ | £1077.96 each |
| 199+ | £1063.59 each |
| 249+ | £1049.22 each |
| 499+ | £1034.84 each |
| 999+ | £1006.10 each |
2-3 Days Availability

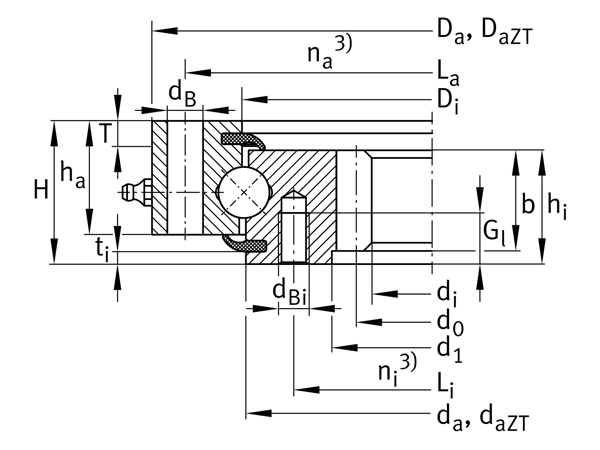

| Main Dimensions & Performance Data | ||
| d1 - Bore Diameter | = | 648mm |
| T - Length centering inner ring | = | 4.5mm |
| H - Height | = | 56mm |
| Da - Outside Diameter | = | 816mm |
| Outside diameter lower tolerance | = | -0.6mm |
| Outside diameter upper tolerance | = | 0mm |
| ha - Width outer ring | = | 44.5mm |
| hi - Width inner ring | = | 44.5mm |
| Weight | = | 58.3 kg |
| Dimensions | ||
| Di - Inner diameter outer ring | = | 745.5mm |
| Inner diameter outer ring upper tolerance | = | 0.6mm |
| Inner diameter outer ring lower tolerance | = | 0mm |
| La - Pitch circle diameter fixing holes outer ring | = | 790mm |
| na - Number of fixing holes in outer ring | = | 40 |
| dB - Fixing bore | = | 14mm |
| da - Outside diameter inner ring | = | 742.5mm |
| Outside diameter inner ring upper tolerance | = | 0mm |
| Outside diameter inner ring lower tolerance | = | -0.6mm |
| Li - Pitch circle diameter fixing holes inner ring | = | 705mm |
| dBi - Tread fixing bore | = | M12 |
| Gl - Thread depth fixing hole | = | 20mm |
| ni - Number of fixing holes in inner ring | = | 40 |
| Fr zul - Max. radial load fixing screws (friction locking) | = | 165200 N |
| m - Modul of gearing | = | 6mm |
| z - Number of teeth | = | 110 |
| d0 - Pitch circle diameter gearing | = | 660mm |
| Fz norm - Max. tooth force root fatigue strenght (at a shock factor of 1,2) | = | 23700 N |
| Fz max - Max. tooth force against tooth fracture (at a shock factor of 1,35) | = | 35000 N |
| Temperature range | ||
| Tmin - Operating temperature min. | = | -25 Deg C |
| Tmax - Operating temperature max. | = | 80 Deg C |
| Calculation factors | ||
| Ca - Basic dynamic load rating, axial | = | 171000 N |
| C0a - Basic static load rating, axial | = | 1200000 N |
| Cr - Basic dynamic load rating, radial | = | 155000 N |
| C0r - Basic static load rating, radial | = | 550000 N |
