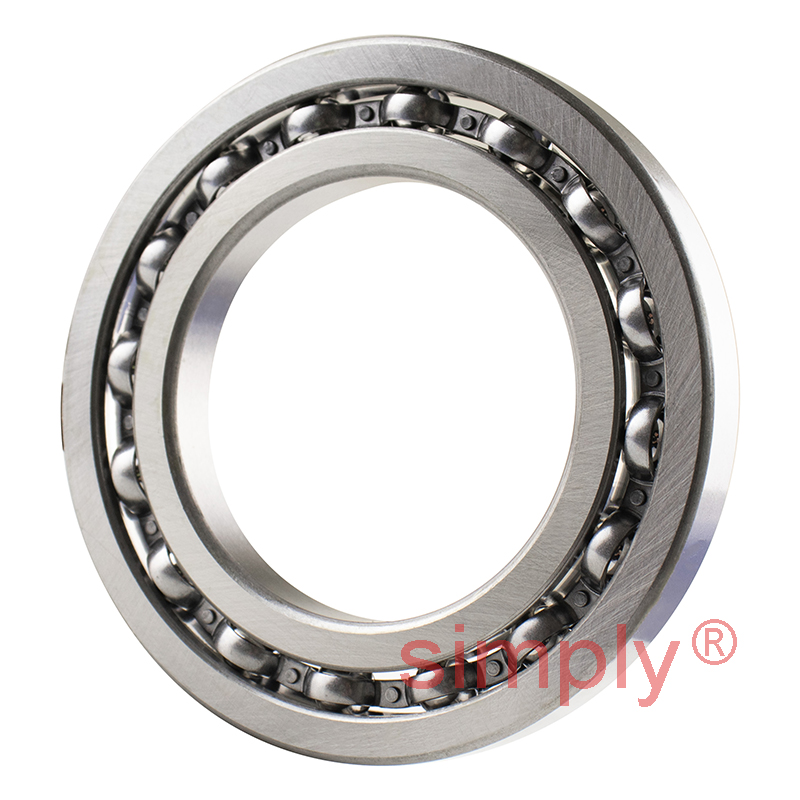

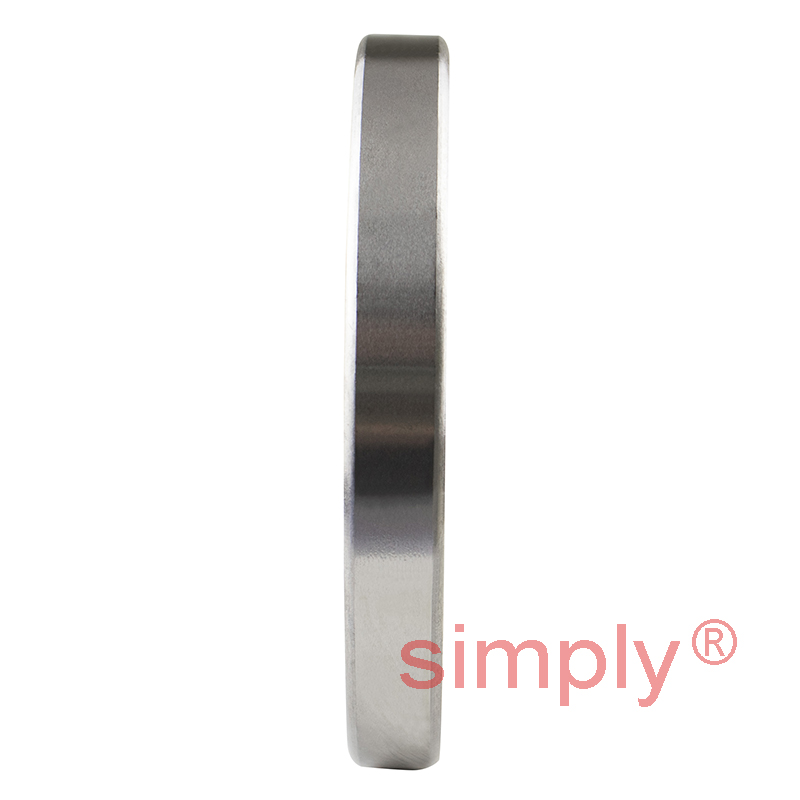

Major Branded 16011C3 Open Deep Groove Ball Bearing 55x90x11mm
Equivalent to: 16011 16011C3
What is C3? [Click Here]
£27.13
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £24.14 each |
| 19+ | £22.79 each |
| 29+ | £22.52 each |
| 39+ | £22.24 each |
| 49+ | £21.97 each |
| 74+ | £21.70 each |
| 99+ | £20.35 each |
In Stock
| d | = | 55mm |
| D | = | 90mm |
| B | = | 11mm |
| Dynamic load C | = | 20.3 kN |
| Static load Co | = | 14 kN |
| Fatigue load limit Pu | = | 0.7 kN |
| Reference speed | = | 16000 rpm |
| Limiting speed | = | 10000 rpm |
| Mass | = | 0.26 kg |
| d1 | = | 67mm |
| D1 | = | 78.1mm |
| r1r2 min | = | 0.6mm |
| da min | = | 58.2mm |
| Da max | = | 86.8mm |
| ra max | = | 0.6mm |
| Calc factor Kr | = | 0.02 |
| Calc factor | = | 15 |
