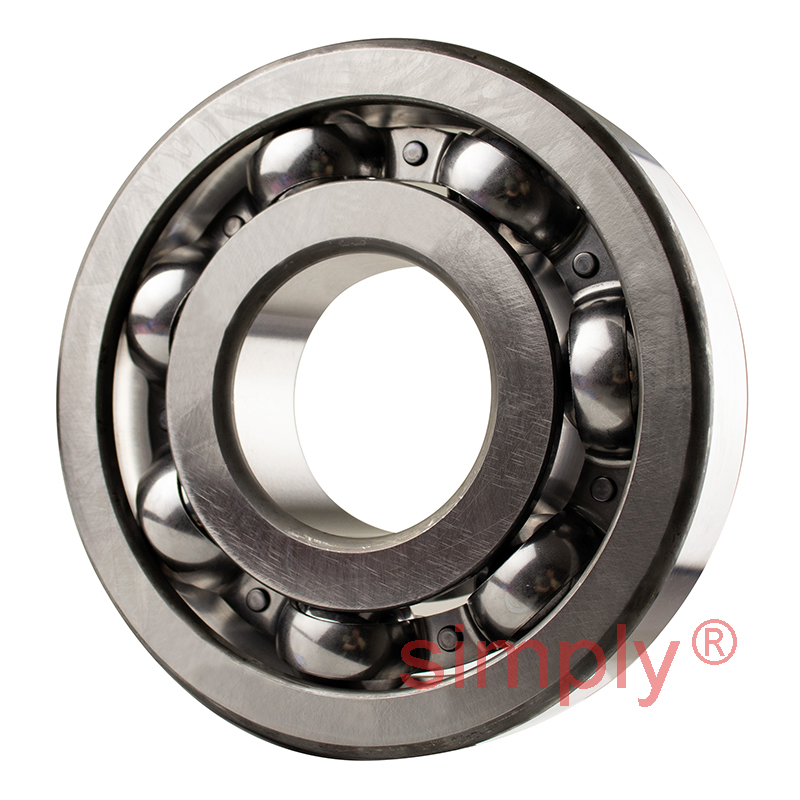

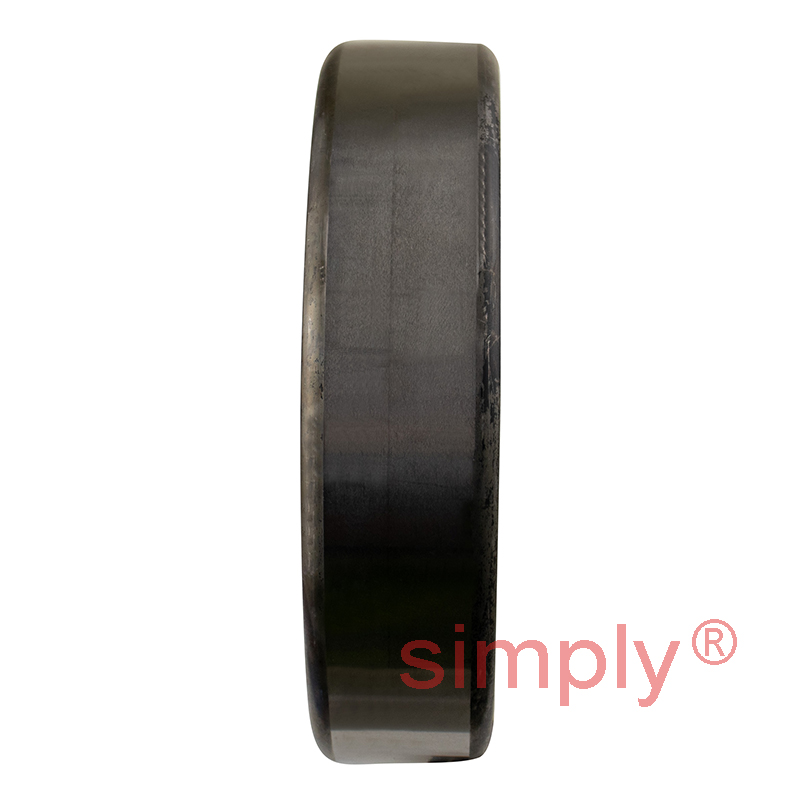

Major Brand 6411C3 Open Deep Groove Ball Bearing 55x140x33mm
Equivalent to: 6411 6411C3
What is C3? [Click Here]
£105.25
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £93.67 each |
| 19+ | £88.41 each |
| 29+ | £87.35 each |
| 39+ | £86.30 each |
| 49+ | £85.25 each |
| 74+ | £84.20 each |
| 99+ | £78.93 each |
In Stock
| d | = | 55mm |
| D | = | 140mm |
| B | = | 33mm |
| Dynamic load C | = | 99.5 kN |
| Static load Co | = | 62 kN |
| Fatigue load limit Pu | = | 2.6 kN |
| Reference speed | = | 11000 rpm |
| Limiting speed | = | 7000 rpm |
| Mass | = | 2.3 kg |
| d1 | = | 81.6mm |
| D1 | = | 113mm |
| r1r2 min | = | 2.1mm |
| da min | = | 69mm |
| Da max | = | 126mm |
| ra max | = | 2mm |
| Calc factor Kr | = | 0.035 |
| Calc factor | = | 12 |
