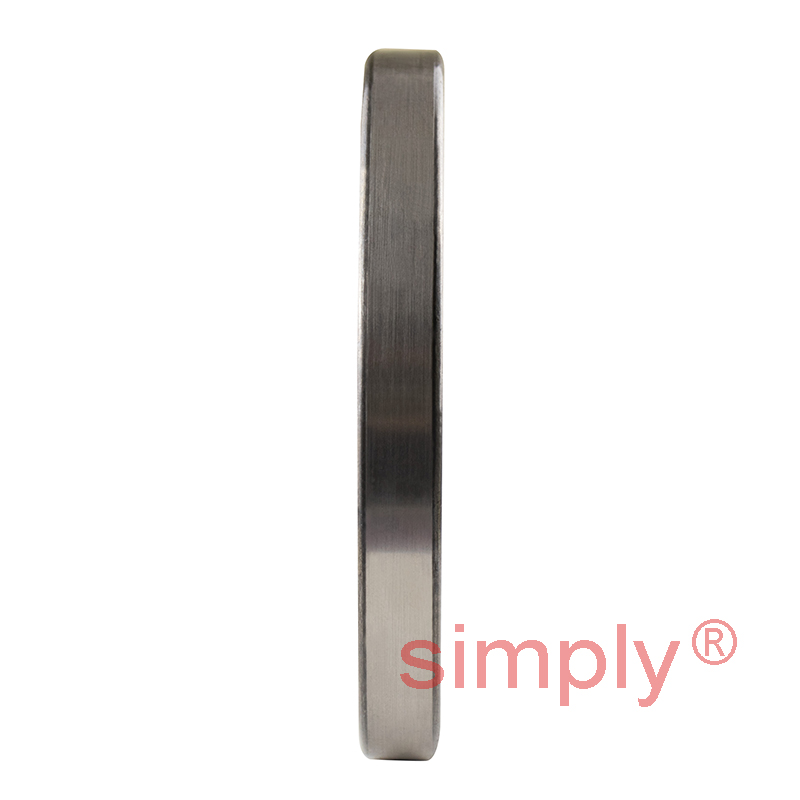

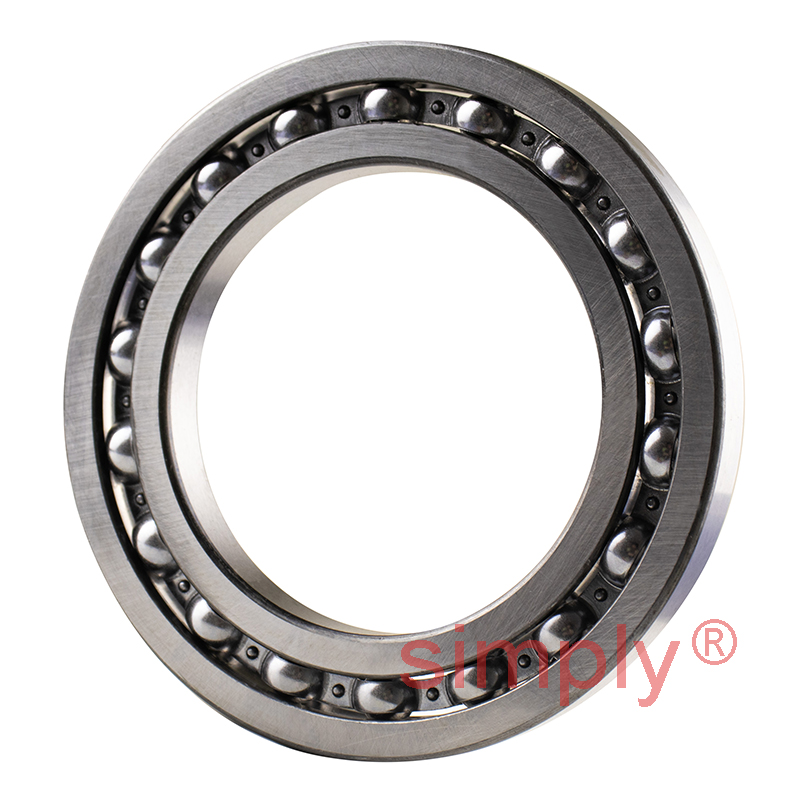

Major Branded 16013C3 Open Deep Groove Ball Bearing 65x100x11mm
Equivalent to: 16013 16013C3
What is C3? [Click Here]
£35.98
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £32.03 each |
| 19+ | £30.23 each |
| 29+ | £29.87 each |
| 39+ | £29.51 each |
| 49+ | £29.15 each |
| 74+ | £28.79 each |
| 99+ | £26.99 each |
In Stock
| d | = | 65mm |
| D | = | 100mm |
| B | = | 11mm |
| Dynamic load C | = | 22.5 kN |
| Static load Co | = | 16.6 kN |
| Fatigue load limit Pu | = | 0.83 kN |
| Reference speed | = | 14000 rpm |
| Limiting speed | = | 9000 rpm |
| Mass | = | 0.3 kg |
| d1 | = | 76.5mm |
| D1 | = | 88.4mm |
| r1r2 min | = | 0.6mm |
| da min | = | 68.2mm |
| Da max | = | 96.8mm |
| ra max | = | 0.6mm |
| Calc factor Kr | = | 0.02 |
| Calc factor | = | 16 |
