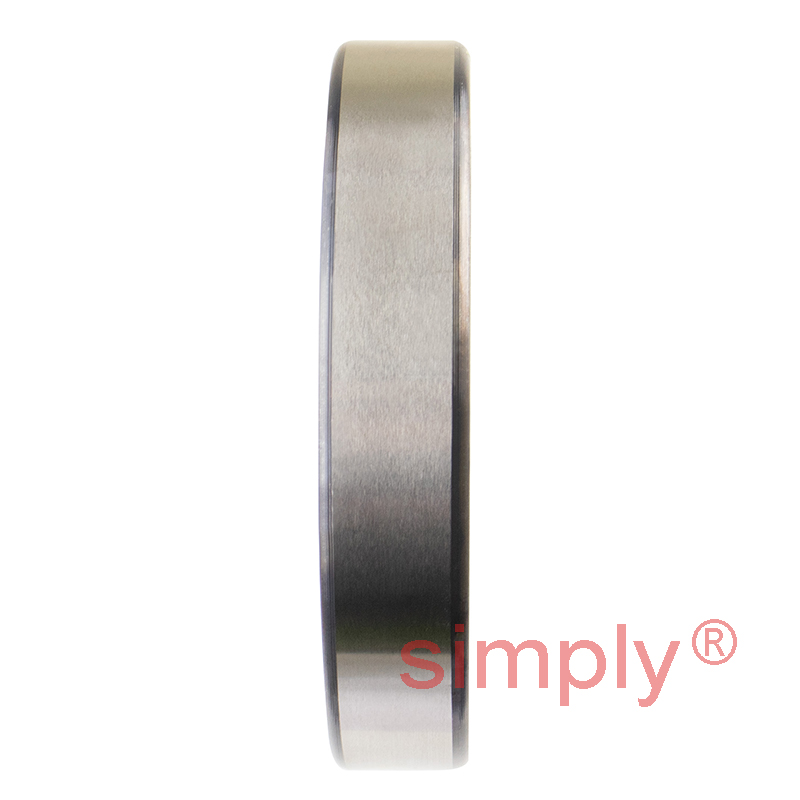

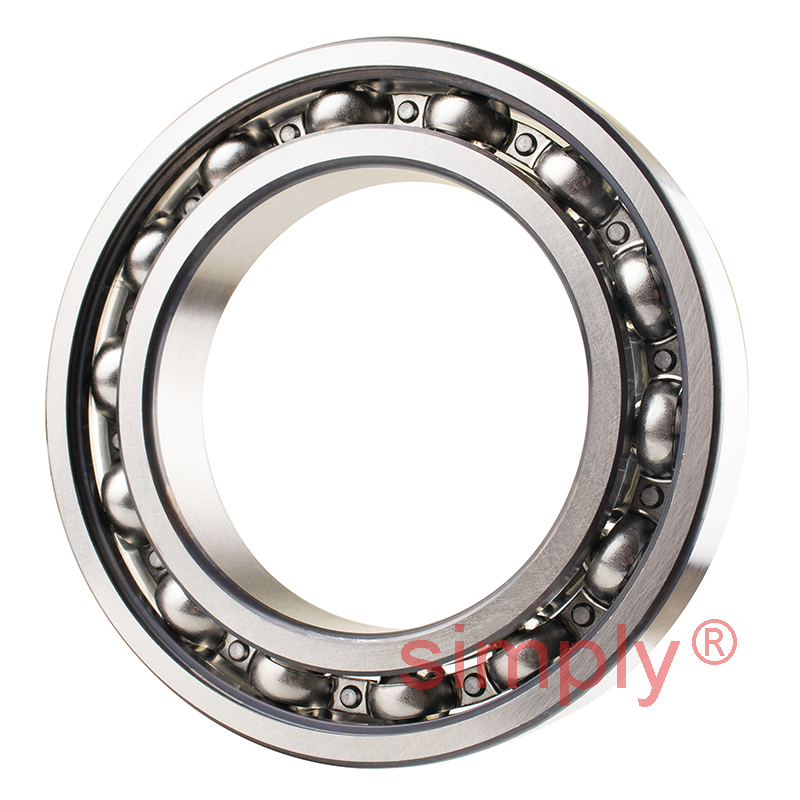

Major Brand 6014C3 Open Deep Groove Ball Bearing 70x110x20mm
Equivalent to: 6014 6014C3
What is C3? [Click Here]
£51.77
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £46.07 each |
| 19+ | £43.48 each |
| 29+ | £42.97 each |
| 39+ | £42.45 each |
| 49+ | £41.93 each |
| 74+ | £41.41 each |
| 99+ | £38.82 each |
In Stock
| d | = | 70mm |
| D | = | 110mm |
| B | = | 20mm |
| Dynamic load C | = | 39.7 kN |
| Static load Co | = | 31 kN |
| Fatigue load limit Pu | = | 1.32 kN |
| Reference speed | = | 13000 rpm |
| Limiting speed | = | 8000 rpm |
| Mass | = | 0.6 kg |
| d1 | = | 82.9mm |
| D1 | = | 97.2mm |
| D2 | = | 99.9mm |
| r1r2 min | = | 1.1mm |
| da min | = | 76mm |
| Da max | = | 104mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.025 |
| Calc factor | = | 16 |
