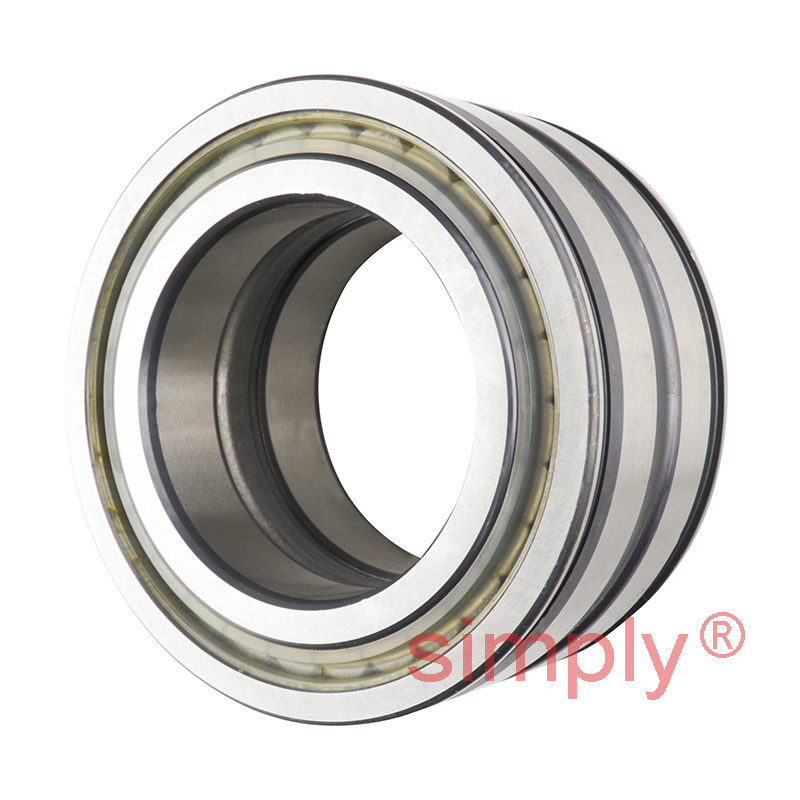

SL045011-PP Double Row Full Complement Cylindrical Roller Bearing with Snap Ring Grooves (Cable Sheave Bearings) 55x90x46mm
£189.09
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £168.29 each |
| 19+ | £158.84 each |
| 29+ | £156.94 each |
| 39+ | £155.05 each |
| 49+ | £153.16 each |
| 74+ | £151.27 each |
| 99+ | £141.82 each |
In Stock

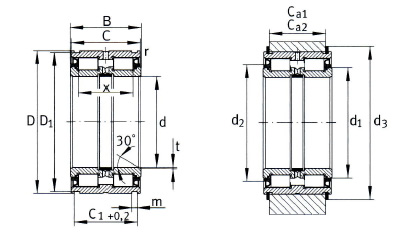

| d | = | 55 |
| D | = | 90 |
| B | = | 46 |
| C | = | 45 |
| C1 +0.2 | = | 40.2 |
| D1 | = | 87.4 |
| m | = | 3.2 |
| r min | = | 0.6 |
| t | = | 1 |
| x | = | 36 |
| Ca1 -0.2 | = | 35 |
| Ca2 -0.2 | = | 34 |
| d1 | = | 68.6 |
| d2 | = | 73 |
| d3 | = | 99 |
| Dynamic load | = | 120000 N |
| Static load | = | 186000 N |
| Fatigue limit load | = | 25500 N |
| Speed in grease | = | 1800 rpm |
| Snap ring | = | WRE90 |
| Retaining ring to DIN 471 | = | 90X3 |
| Weight | = | 1.18 kg |
