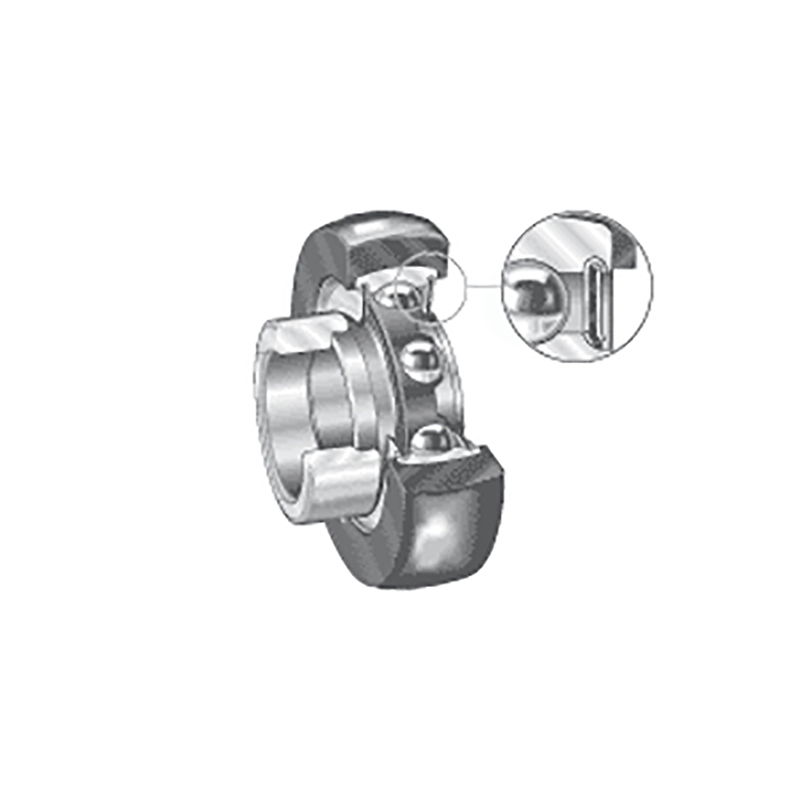

INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
£27.11
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £24.13 each |
| 5+ | £22.78 each |
| 10+ | £22.50 each |
| 15+ | £22.23 each |
| 20+ | £21.96 each |
| 30+ | £21.69 each |
| 40+ | £20.34 each |
| 50+ | £20.06 each |
| 60+ | £19.79 each |
| 75+ | £19.52 each |
| 100+ | £18.98 each |
In Stock
| d | = | 15mm |
| D | = | 47.3mm |
| B2 | = | 31.1mm |
| B1 | = | 28.6mm |
| C | = | 18mm |
| D2 | = | 33.5mm |
| d3 max | = | 28mm |
| S1 | = | 22.1mm |
| Operating temperature | = | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | = | 70 deg |
| Rubber ring: load carrying capacity Cg | = | 840 N |
| Dynamic load Cr | = | 9800 N |
| Static load C0r | = | 4750 N |
| Designation of rubber interliner | = | RABR39/46 |
| Designation of bearing | = | RAE15-NPP-B-FA106 |
| Weight | = | 0.15 kg |
