FAG 23936SMBC3 Spherical Roller Bearing with Cylindrical Bore 180x250x52mm
What is C3? [Click Here]
£972.71
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £865.71 each |
| 4+ | £817.08 each |
| 9+ | £807.35 each |
| 19+ | £797.62 each |
| 29+ | £787.90 each |
| 39+ | £778.17 each |
| 49+ | £729.53 each |
In Stock

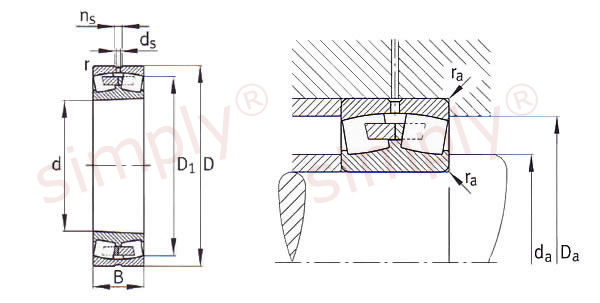

| Dimensions | ||
| d | = | 180mm |
| D | = | 250mm |
| B | = | 52mm |
| r min. | = | 2mm |
| D1 | = | 230.9mm |
| ds | = | 4.8mm |
| ns | = | 9.5mm |
| da min. | = | 188.8mm |
| Da max. | = | 241.2mm |
| ra max. | = | 2mm |
| Loads, Speeds and Weights | ||
| Fatigue limit load | = | 57000 N |
| Limiting speed | = | 2200 rpm |
| Reference speed | = | 1850 rpm |
| Dynamic Load Rating | = | 440000 N |
| Static Load Rating | = | 850000 N |
| Weight | = | 7.96kg |
| Factors | ||
| e | = | 0.2 |
| Y1 | = | 3.42 |
| Y2 | = | 5.09 |
| Y0 | = | 3.34 |
