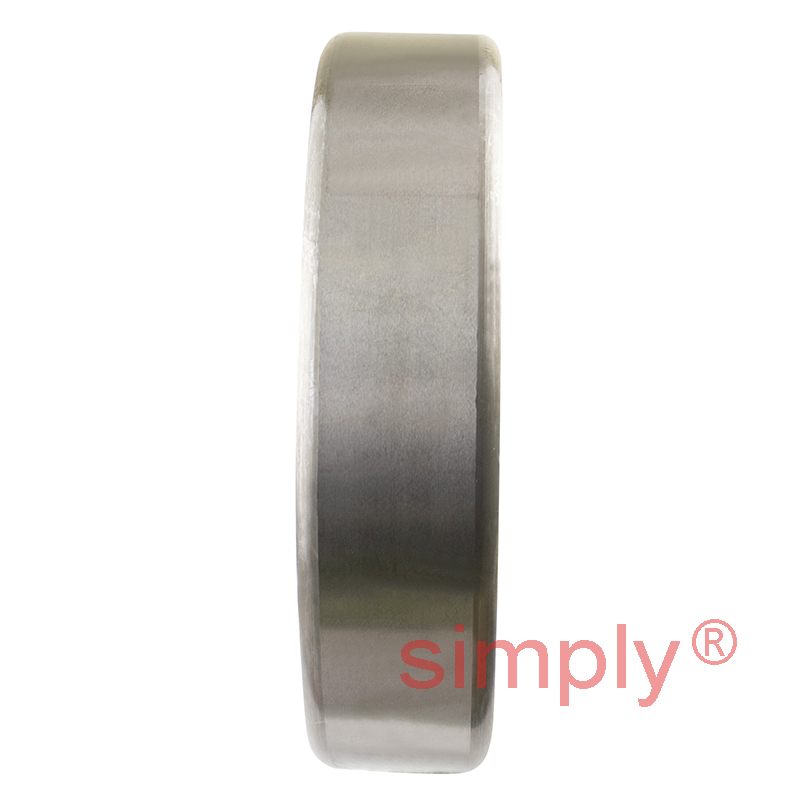

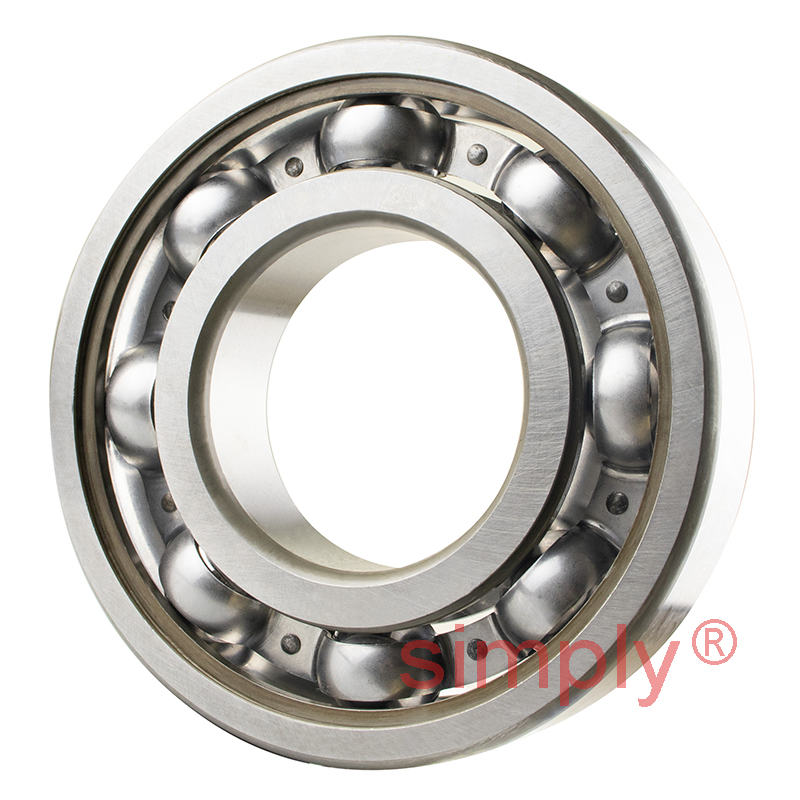

Major Brand 6315C4 Open Deep Groove Ball Bearing 75x160x37mm
Equivalent to: 6315 6315C4
What is C4? [Click Here]
£163.52
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £145.53 each |
| 19+ | £137.36 each |
| 29+ | £135.72 each |
| 39+ | £134.09 each |
| 49+ | £132.45 each |
| 74+ | £130.82 each |
| 99+ | £122.64 each |
In Stock
| d | = | 75mm |
| D | = | 160mm |
| B | = | 37mm |
| Dynamic load C | = | 119 kN |
| Static load Co | = | 76.5 kN |
| Fatigue load limit Pu | = | 3 kN |
| Reference speed | = | 9000 rpm |
| Limiting speed | = | 5600 rpm |
| Mass | = | 3 kg |
| d1 | = | 101mm |
| D1 | = | 133mm |
| D2 | = | 138mm |
| r1r2 min | = | 2.1mm |
| da min | = | 87mm |
| Da max | = | 148mm |
| ra max | = | 2mm |
| Calc factor Kr | = | 0.03 |
| Calc factor | = | 13 |
