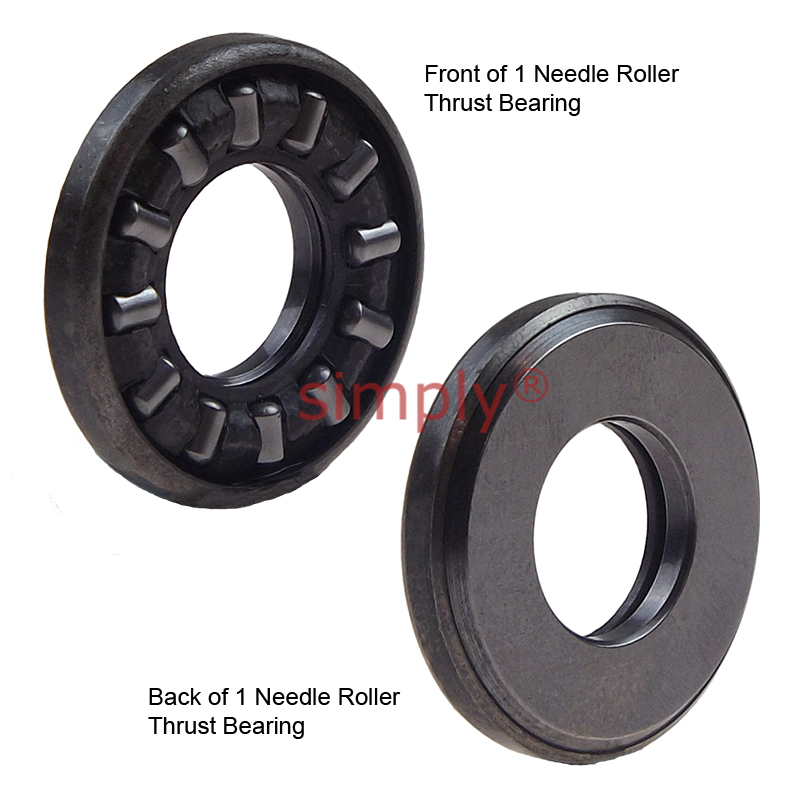

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing
Brand / Quality: Major Brand - High Quality Inside Diameter: 10mm Outside Diameter: 22mm Width: 4mm
Dc1
=
10mm
D
=
22mm
B1
=
4mm
Eb
=
12mm
Ea
=
18.6mm
Dynamic load
=
5 kN
Static load
=
10.9 kN
Speed rating in oil
=
15500 rpm
Mass
=
0.007 kg
