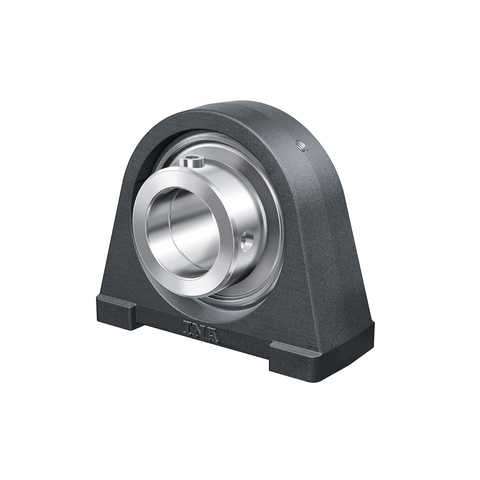

INA PSHE25TVFA125.5 Plastic Threaded Base Plummer Block Housing with Eccentric Collar and Anti-Corrosion Protection 25mm Bore
£56.25
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £50.62 each |
| 9+ | £47.81 each |
| 19+ | £45.00 each |
| 29+ | £42.18 each |
| 39+ | £39.37 each |
| 49+ | £36.56 each |
| 59+ | £33.75 each |
| 69+ | £28.12 each |
| 79+ | £27.00 each |
| 89+ | £26.44 each |
| 99+ | £25.31 each |
In Stock
| d | = | 25mm |
| L | = | 76.2mm |
| H2 | = | 73.5mm |
| A | = | 39.5mm |
| B1 | = | 31mm |
| d3 max | = | 37.5mm |
| H | = | 36.5mm |
| J | = | 50.8mm |
| K | = | M10 |
| Q | = | 1/4 - 28 UNF |
| S1 | = | 23.5mm |
| Mass | = | 0.35 kg |
| Basic dynamic load rating Cr | = | 14900 N |
| Basic static load rating Cor | = | 7800 N |
| Load carrying capacity of housing Cor G | = | 7000 N |
| Designation of housing | = | GEH.SHE05-TV |
| Designation of bearing | = | GRAE25-NPP-B-FA107/125.5 |
| Bearing end cap, closed design | = | KASK05-S-G |
| Bearing end cap (available by agreement) | = | KASK05-S-R-NBR |
