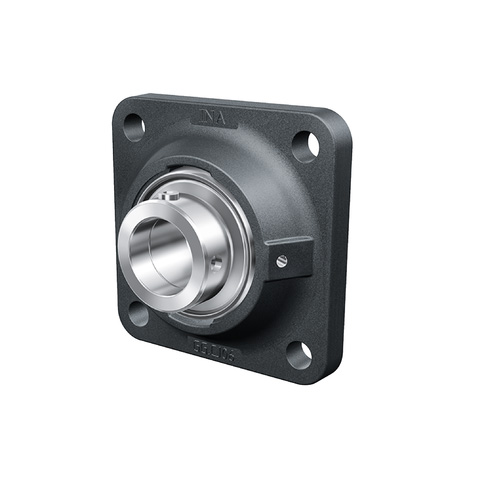

INA RCJ100XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 100mm Bore
£672.63
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £605.37 each |
| 9+ | £571.73 each |
| 19+ | £538.10 each |
| 29+ | £504.47 each |
| 39+ | £470.84 each |
| 49+ | £437.21 each |
| 59+ | £403.58 each |
| 69+ | £336.31 each |
| 79+ | £322.86 each |
| 89+ | £316.14 each |
| 99+ | £302.68 each |
In Stock
| d | = | 100mm |
| L | = | 265mm |
| U | = | 77.5mm |
| A | = | 46mm |
| A1 | = | 25mm |
| A2 | = | 28mm |
| B1 | = | 75mm |
| d3 max | = | 132mm |
| J | = | 210mm |
| N | = | 27mm |
| Q | = | M6 |
| V | = | 230mm |
| Mass | = | 12.25 kg |
| Basic dynamic load rating Cr | = | 130000 N |
| Basic static load rating Cor | = | 93000 N |
| Designation of housing | = | CJ20 |
| Designation of bearing | = | GE100-XL-KRR-B |
