INA PCJ35-TV-FA125.5 Four Bolt Plastic Square Housing with Eccentric Collar Insert 35mm Bore
£63.84
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £56.82 each |
| 9+ | £53.63 each |
| 19+ | £52.99 each |
| 29+ | £52.35 each |
| 39+ | £51.71 each |
| 49+ | £51.07 each |
| 59+ | £47.88 each |
In Stock

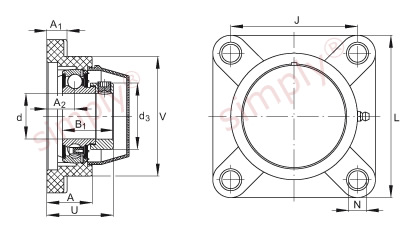

| d | = | 35mm |
| L | = | 118mm |
| U | = | 51mm |
| A | = | 34.8mm |
| A1 | = | 15.5mm |
| A2 | = | 21.5mm |
| B1 | = | 39mm |
| d3 max | = | 55mm |
| J | = | 92mm |
| N | = | 13mm |
| Q | = | 1/4 - 28 UNF |
| V | = | 90mm |
| Mass | = | 0.79 kg |
| Basic dynamic load rating Cr | = | 27500 N |
| Basic static load rating Cor | = | 15300 N |
| Load carrying capacity of housing Cor G | = | 18500 N |
| Designation of housing | = | GEH.CJ07-TV |
| Designation of bearing | = | GRAE35-NPP-B-FA107/125.5 |
| Bearing end cap, closed design (supplied with end cap) | = | KASK07-S-G |
| Bearing end cap, open design, with integral rotary shaft seal (available by agreement) | = | KASK07-S-R-NBR |
| Back seal components | = | RWDR07-R-NBR |
