INA PHE50XL Cast Iron Take Up Unit with Eccentric Collar Insert 50mm Bore
£84.64
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £75.33 each |
| 9+ | £71.10 each |
| 19+ | £70.25 each |
| 29+ | £69.40 each |
| 39+ | £68.56 each |
| 49+ | £67.71 each |
| 59+ | £63.48 each |
In Stock

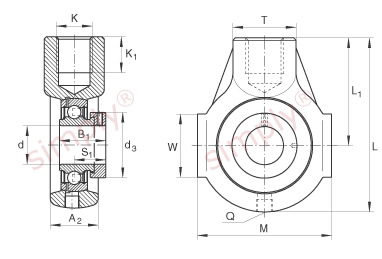

| d | = | 50mm |
| L | = | 145mm |
| M | = | 110mm |
| A2 | = | 40mm |
| B1 | = | 43.8mm |
| d3 max | = | 69mm |
| K | = | M24 |
| K1 | = | 24mm |
| L1 | = | 90mm |
| Q | = | M6 |
| S1 | = | 32.8mm |
| T | = | 40mm |
| W | = | 46mm |
| Mass | = | 1.92 kg |
| Basic dynamic load rating Cr | = | 37500 N |
| Basic static load rating Cor | = | 23200 N |
| Designation of housing | = | HE10 |
| Designation of bearing | = | GRAE50-XL-NPP-B |
