INA RHE20XL Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore
£40.83
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £36.34 each |
| 9+ | £34.30 each |
| 19+ | £33.89 each |
| 29+ | £33.48 each |
| 39+ | £33.07 each |
| 49+ | £32.66 each |
| 59+ | £30.62 each |
In Stock

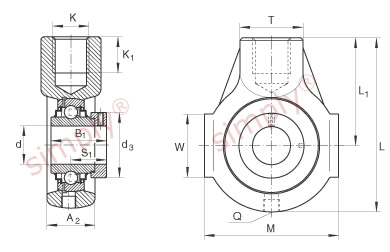

| d | = | 20mm |
| L | = | 91mm |
| M | = | 65mm |
| A2 | = | 25mm |
| B1 | = | 43.7mm |
| d3 max | = | 33mm |
| K | = | M16 |
| K1 | = | 21mm |
| L1 | = | 58mm |
| Q | = | M6 |
| S1 | = | 26.6mm |
| T | = | 30mm |
| W | = | 38mm |
| Mass | = | 0.58 kg |
| Basic dynamic load rating Cr | = | 13600 N |
| Basic static load rating Cor | = | 6600 N |
| Designation of housing | = | HE04 |
| Designation of bearing | = | GE20-XL-KRR-B |
