INA PTUE35XL Cast Iron Take Up Unit with Eccentric Collar Insert 35mm Bore
£56.39
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £50.19 each |
| 9+ | £47.37 each |
| 19+ | £46.80 each |
| 29+ | £46.24 each |
| 39+ | £45.68 each |
| 49+ | £45.11 each |
| 59+ | £42.29 each |
In Stock

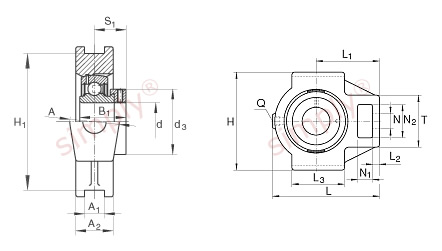

| d | = | 35mm |
| L | = | 131.5mm |
| H | = | 102mm |
| A | = | 40mm |
| A1 | = | 12mm (Tolerance: H13) |
| A2 | = | 30mm |
| B1 | = | 39mm |
| d3 max | = | 55mm |
| H1 | = | 89mm (Tolerance: +/-0.15) |
| L1 | = | 80mm |
| L2 | = | 13mm |
| L3 | = | 63mm |
| N | = | 22mm |
| N1 | = | 18mm |
| N2 | = | 36.5mm |
| Q | = | M6 |
| S1 | = | 29.5mm |
| T | = | 64mm |
| Mass | = | 1.65 kg |
| Basic dynamic load rating Cr | = | 27500 N |
| Basic static load rating Cor | = | 15300 N |
| Designation of housing | = | TUE07 |
| Designation of bearing | = | GRAE35-XL-NPP-B |
