£45.60
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £40.58 each |
| 9+ | £38.30 each |
| 19+ | £37.85 each |
| 29+ | £37.39 each |
| 39+ | £36.94 each |
| 49+ | £36.48 each |
| 59+ | £34.20 each |
In Stock

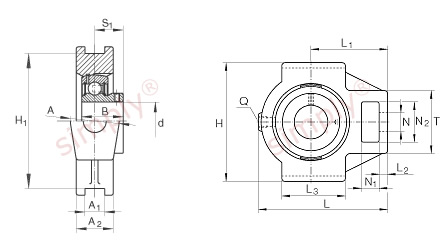

| d | = | 30mm |
| L | = | 114.5mm |
| H | = | 102mm |
| A | = | 37mm |
| A1 | = | 12mm (Tolerance: H13) |
| A2 | = | 25mm |
| B | = | 30mm |
| H1 | = | 89mm (Tolerance: +/-0.15) |
| L1 | = | 70mm |
| L2 | = | 10mm |
| L3 | = | 57mm |
| N | = | 22mm |
| N1 | = | 18mm |
| N2 | = | 36.5mm |
| Q | = | M6 |
| S1 | = | 21mm |
| T | = | 56mm |
| Mass | = | 1.11 kg |
| Basic dynamic load rating Cr | = | 20700 N |
| Basic static load rating Cor | = | 11300 N |
| Designation of housing | = | TUE06 |
| Designation of bearing | = | GAY30-XL-NPP-B |
