INA RTUEY40TVVAHLA Plastic Take Up Unit with Grub Screw Insert Corrosion-Resistant Design 40mm Bore
£193.43
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £172.15 each |
| 9+ | £162.48 each |
| 19+ | £160.55 each |
| 29+ | £158.61 each |
| 39+ | £156.68 each |
| 49+ | £154.74 each |
| 59+ | £145.07 each |
In Stock

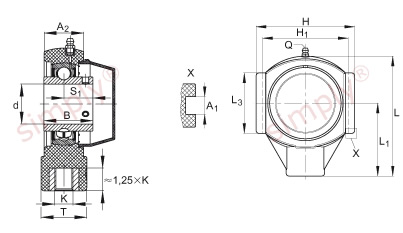

| d | = | 40mm |
| L | = | 140mm |
| H | = | 113mm |
| A1 | = | 16mm |
| A2 | = | 33.5mm |
| B | = | 49.2mm |
| H1 | = | 102mm |
| K | = | M16? |
| L1 | = | 85mm |
| L3 | = | 80mm |
| Q | = | 1/4 - 28 UNF? |
| S1 | = | 30.2mm |
| T | = | 40mm |
| Mass | = | 1.04 kg |
| Basic dynamic load rating Cr | = | 31500 N |
| Basic static load rating Cor | = | 18900 N |
| Load carrying capacity of housing Cor G | = | 11200 N |
| Designation of housing | = | GEH.TUE08-TV? |
| Designation of bearing | = | GYE40-KRR-B-FA107-VA? |
| Bearing end cap, closed design | = | KASK08-S-G? |
| Bearing end caps, open design, with integral rotary shaft seal (available by agreement) | = | KASK08-S-R-NBR? |
