KOYO 6304NR Deep Groove Ball Bearing with Snap Ring Groove 20x52x15mm
Equivalent to: 963046
£9.89
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £8.80 each |
| 20+ | £8.31 each |
| 30+ | £8.21 each |
| 40+ | £8.11 each |
| 50+ | £8.01 each |
| 75+ | £7.91 each |
| 100+ | £7.42 each |
In Stock

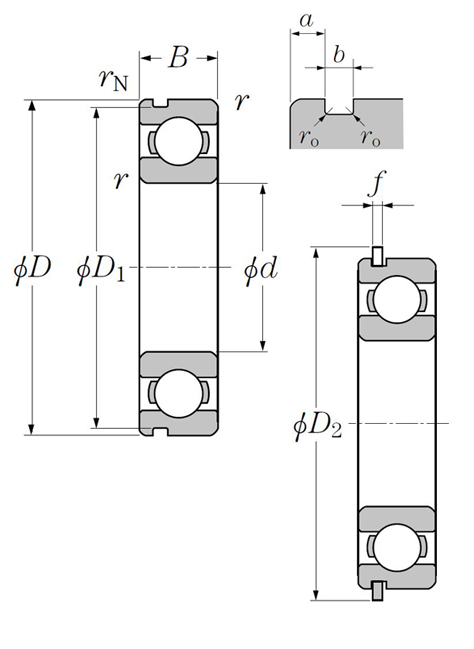

| Bearing dimensions | ||
| d | = | 20mm |
| D | = | 52mm |
| B | = | 15mm |
| rs min | = | 1.1mm |
| rNS Min. | = | 0.5mm |
| Loads angles and speeds | ||
| Cr | = | 17.6 kN |
| Cor | = | 7.9 kN |
| Cu | = | 0.615 kN |
| f0 | = | 12.4 kN |
| Grease | = | 14000 rpm |
| Oil | = | 17000 rpm |
| Snap Ring Dimensions | ||
| D1 Max. | = | 49.73mm |
| a Max. | = | 2.46mm |
| b Min. | = | 1.35mm |
| ro Max. | = | 0.4mm |
| D2 Max. | = | 57.9mm |
| f Max. | = | 1.12mm |

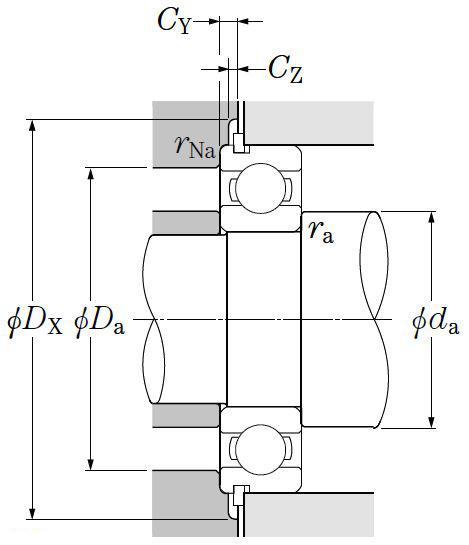

| Fitting Dimensions | ||
| da Min. | = | 26.5mm |
| da Max. | = | 28.5mm |
| Da Max. | = | 45.5mm |
| DX (approx) | = | 58.5mm |
| CY Max. | = | 3.3mm |
| CZ Min. | = | 1.2mm |
| ras Max. | = | 1mm |
| rNas Max. | = | 0.5mm |
| Weight | = | 0.144 kg |
