2205K2RS Budget Rubber Sealed Self Aligning Ball Bearings with Taper Bore 25x52x18mm

Page Feedback?

Equivalent to: 2205EK2RS

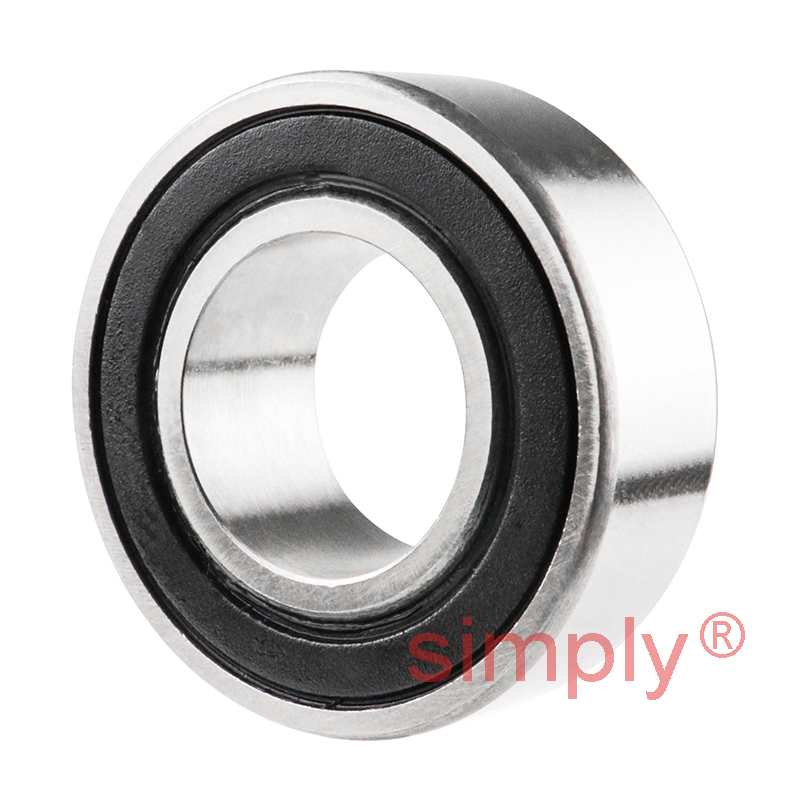

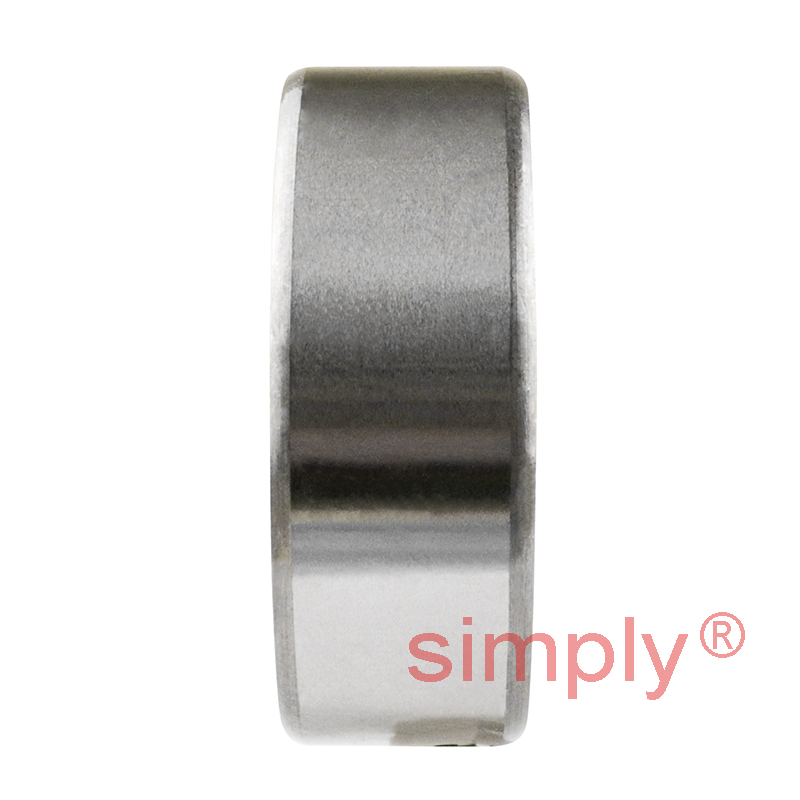

2205K2RS Budget Rubber Sealed Self Aligning Ball Bearings with Taper Bore 25x52x18mm

SKU: 2205K-2RS-EU

£17.54 ex VAT

Price Breaks

Quantity	Prices
10+	£15.61 each
19+	£14.74 each
29+	£14.56 each
39+	£14.39 each
49+	£14.21 each
74+	£14.03 each
99+	£13.16 each
199+	£12.98 each
249+	£12.81 each
499+	£12.63 each
999+	£12.28 each

10+ £15.61 each
19+ £14.74 each
29+ £14.56 eachClick Here…

In Stock

Add to a Save List

Rubber Sealed Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Supplied with two rubber seals this provided protection from the surrounding environment but limits the amount of self alignment
Benefits: Tolerates misalignment, cool running, self centering

Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 25mm
Outside Diameter: 52mm
Width: 18mm
Seals / Shields: Rubber Sealed
Clearance: * Standard
Need Oil Seals?

Need Viton Seals?

H305C Adaptor Sleeve

H305E Adaptor Sleeve

Dimensions
d	=	25mm
D	=	52mm
B	=	18mm
D1	=	46.3mm
d2	=	31mm
r1r2	=	1mm
da min	=	30.6mm
da max	=	31mm
Da max	=	46.4mm
ra max	=	1mm
Calculation Data
C	=	13.3kN
Co	=	4kN
Pu	=	0.21kN
limit	=	9000rpm
e	=	0.28
Y1	=	2.2
Y2	=	3.5
Y0	=	2.5
Weights
mass	=	0.16kg
Matching Adaptor Sleeves
Sleeve No.	=	H305C
Sleeve No.	=	H305E
