Average Rating (3 Reviews)

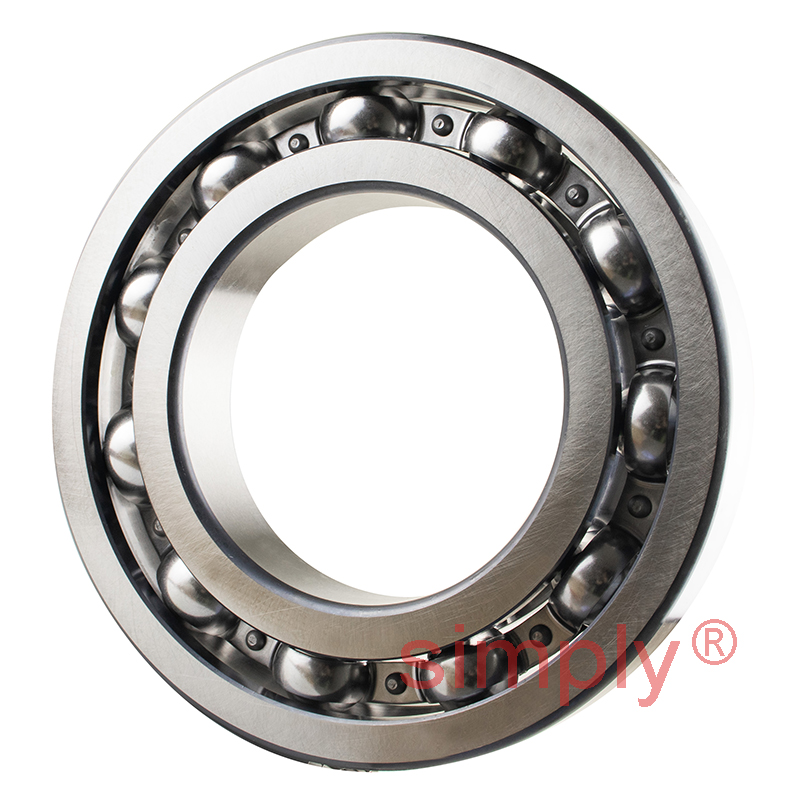

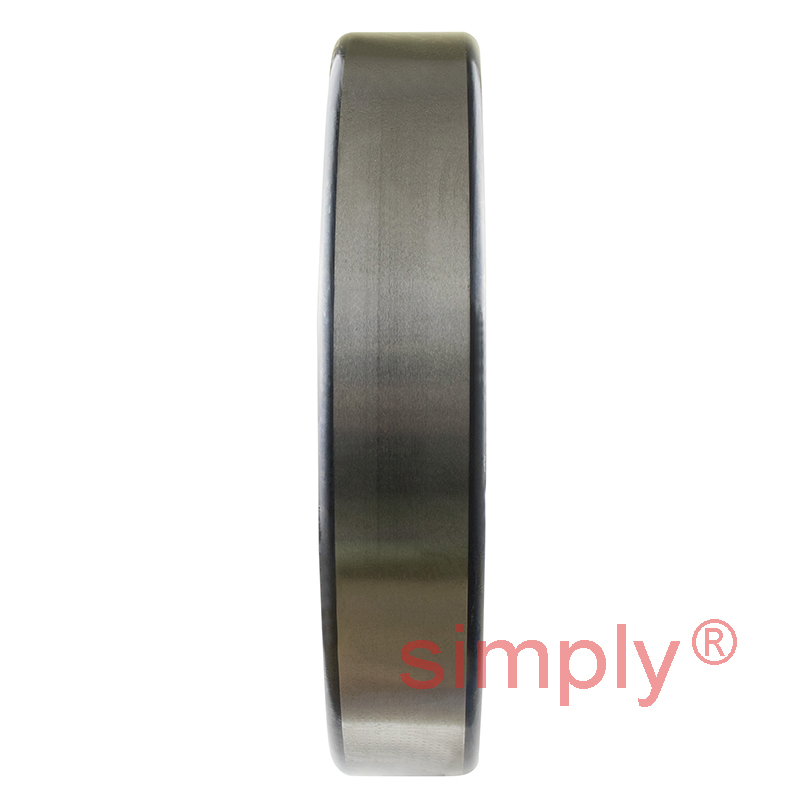

Major Brand 6224C3 Open Deep Groove Ball Bearing 120x215x40mm
Equivalent to: 6224 6224C3
What is C3? [Click Here]
£245.68
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £218.65 each |
| 19+ | £206.37 each |
| 29+ | £203.91 each |
| 39+ | £201.46 each |
| 49+ | £199.00 each |
| 74+ | £196.54 each |
| 99+ | £184.26 each |
In Stock
| d | = | 120mm |
| D | = | 215mm |
| B | = | 40mm |
| Dynamic load C | = | 146 kN |
| Static load Co | = | 118 kN |
| Fatigue load limit Pu | = | 3.9 kN |
| Reference speed | = | 6300 rpm |
| Limiting speed | = | 4000 rpm |
| Mass | = | 5.15 kg |
| d1 | = | 151mm |
| D1 | = | 184mm |
| D2 | = | 189mm |
| r1r2 min | = | 2.1mm |
| da min | = | 132mm |
| Da max | = | 203mm |
| ra max | = | 2mm |
| Calc factor Kr | = | 0.025 |
| Calc factor | = | 14 |
