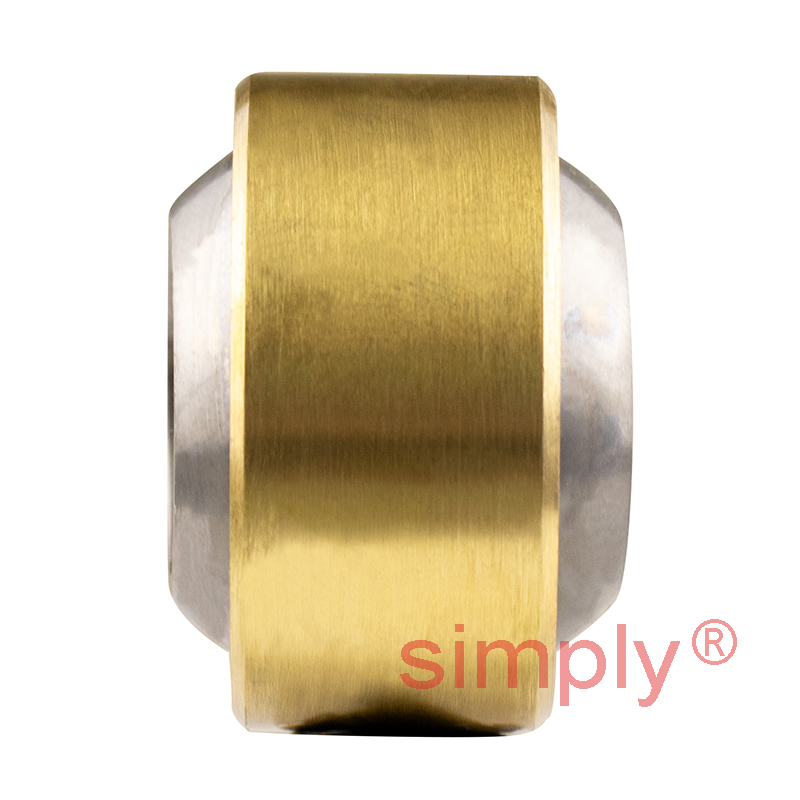

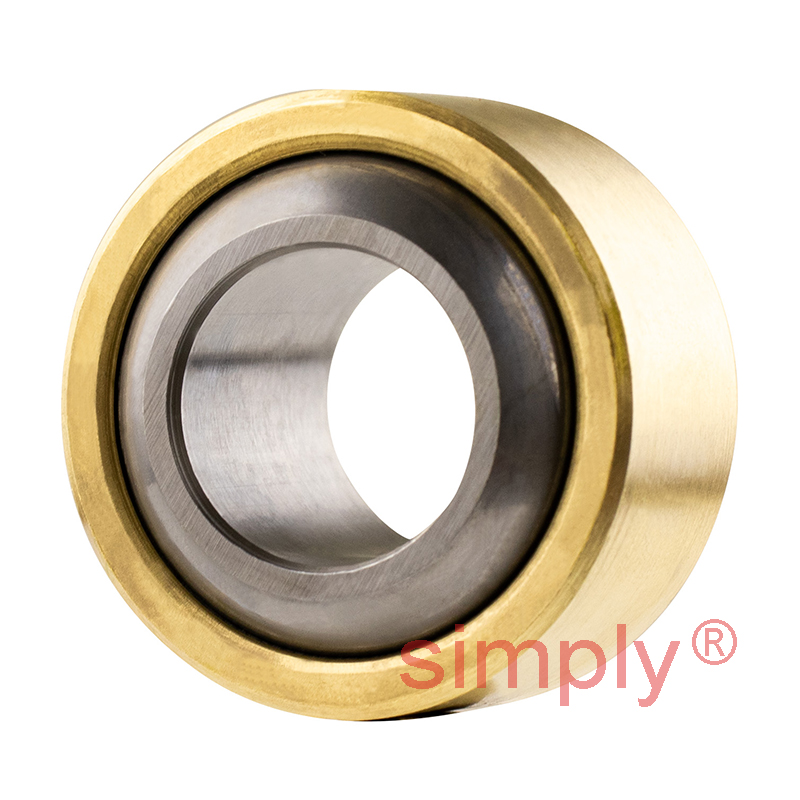

INA GE14PW Steel / PTFE Spherical Plain Bearing 14x28x19x13.5mm
Equivalent to: GE14-PW
£37.44
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £33.32 each |
| 19+ | £31.45 each |
| 29+ | £31.08 each |
| 39+ | £30.70 each |
| 49+ | £30.33 each |
| 74+ | £29.95 each |
| 99+ | £28.08 each |
| 199+ | £27.71 each |
| 249+ | £27.33 each |
| 499+ | £26.96 each |
| 999+ | £26.21 each |
In Stock
| d | = | 14mm (Bore tolerance: H7 (arithmetic mean value)) |
| D | = | 28mm (Tolerance: 0/-0.009) |
| B | = | 19mm (Tolerance: 0/-0.12) |
| Radial internal clearance | = | 0.006-0.035mm |
| C | = | 13.5mm (Tolerance: 0/-0.24) |
| Da min | = | 22.5mm |
| da max | = | 16.8mm |
| dk | = | 25.4mm |
| Chamfer dimension r1s min | = | 0.3mm |
| Chamfer dimension r2s min | = | 0.3mm |
| a | = | 16° |
| Mass | = | 0.054 kg |
| Basic dynamic load, radial Cr | = | 31000 N |
| Basic static load, radial Cor | = | 77500 N |
