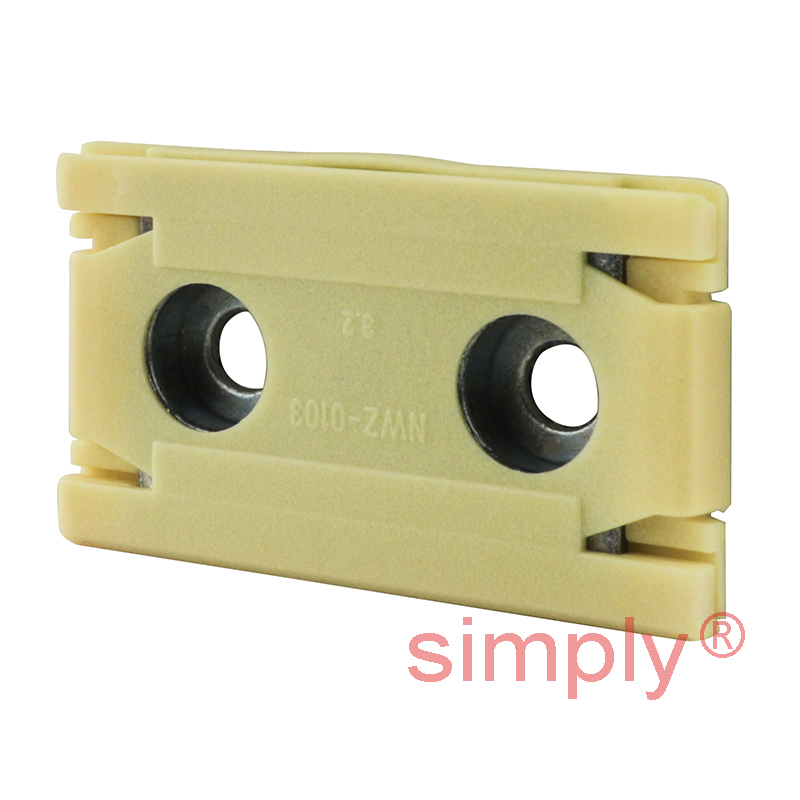

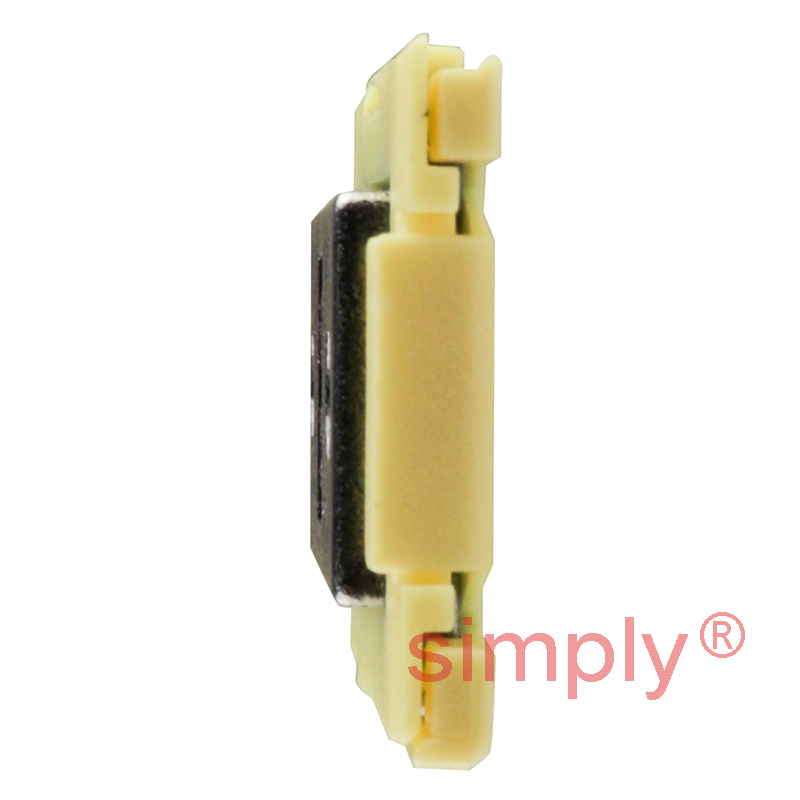

Igus drylin N NW-01-27-P Guide Carriage Installation Size 27 iglidur J Sliding Element
£6.27
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £5.58 each |
| 19+ | £5.26 each |
| 29+ | £5.20 each |
| 39+ | £5.14 each |
| 49+ | £5.07 each |
| 74+ | £5.01 each |
| 99+ | £4.70 each |
| 199+ | £4.64 each |
| 249+ | £4.57 each |
| 499+ | £4.51 each |
| 999+ | £4.39 each |
In Stock
| a | = | 24mm |
| C | = | 40mm |
| H | = | 5mm |
| A | = | 14mm |
| C1 | = | 30mm |
| C2 | = | 20mm |
| Material sliding element | = | iglidur® J |
| Design | = | Clip-on plastic |
| Floating bearing | = | Y-Direction |
| Mounting type | = | Through holes |
| High temperature | = | No |
| Camber | = | None |
| Installation size | = | 27 |
| Static load capacity | = | 500 N |
