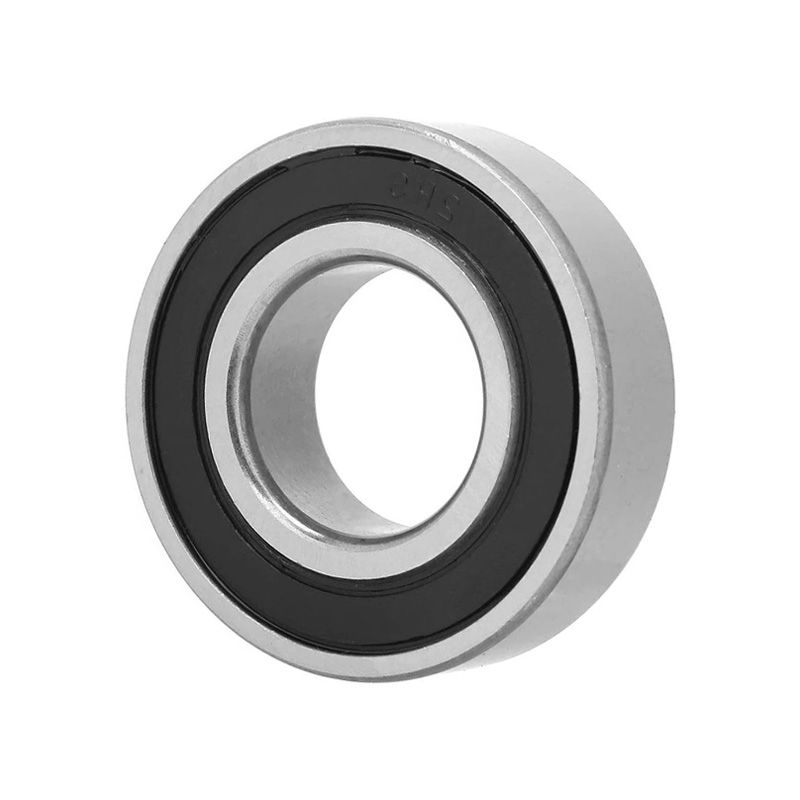

SKF 62032RSHC3 Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
- High Quality Brand SKF
- Cost effective solution
Equivalent to: 6203NSEC3 6203DUC3 6203RSC3 6203RSHC3 6203PC3 6203RSRC3 6203LUC3 62032NSEC3 6203DDUC3 62032RSC3 62032RS1C3 6203PPC3 62032RSRC3 6203LLU
What is C3? [Click Here]
£8.41
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £7.48 each |
| 10+ | £7.06 each |
| 20+ | £6.98 each |
| 30+ | £6.89 each |
| 50+ | £6.81 each |
| 75+ | £6.73 each |
| 100+ | £6.31 each |
| 200+ | £6.22 each |
| 250+ | £6.14 each |
| 500+ | £6.05 each |
| 1000+ | £5.88 each |
In Stock
| d | = | 17mm |
| D | = | 40mm |
| B | = | 12mm |
| Dynamic load C | = | 9.95 kN |
| Static load Co | = | 4.75 kN |
| Fatigue load limit Pu | = | 0.2 kN |
| Reference speed | = | 38000 rpm |
| Limiting speed | = | 12000 rpm |
| Weight | = | 0.065 kg |
| d2 | = | 22.2mm |
| D2 | = | 35mm |
| r1r2 min | = | 0.6mm |
| da min | = | 21.2mm |
| da max | = | 22mm |
| Da max | = | 35.8mm |
| ra max | = | 0.6mm |
| Calculation factor kr | = | 0.025 |
| Calculation factor f0 | = | 13 |
