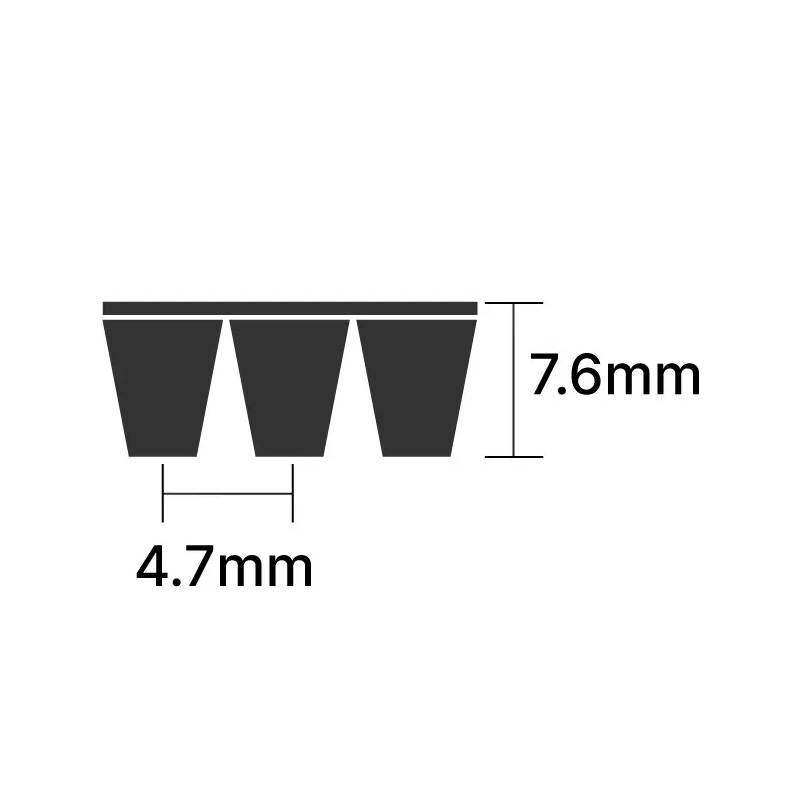

L Section Poly V Belts 6.6 - 9mm depth with 4.7mm pitch between the ribs: The Poly-V belt is a single, endless belt with longitudinal V-shaped ribs that mate perfectly with the V-grooves in the pulleys (sheaves). It combines the convenience of a thin, one-piece flat belt with the strong gripping traction of multiple V-belts to make the Poly-V belt far better than either for many applications. The approximate belt width is the number of ribs multiplied by 4.7mm
To distribute the drive load evenly across the full width of the sheave, the Poly-V belt is built as a single unit with a completely supported, uninterrupted tension member. There is no matching problem. No separate belts to turn over, grab, slip, or interfere with each other.
The thin cross section profile allows use of smaller pulleys than standard V-belts, and Poly-V belts handle speed ratios of 40:1. With all this capacity, the Poly-V belt tracks properly without special guides, flanges, crowns, or deep grooves. And it resists seating in the grooves, so speed ratios remain more consistent and output speed remains more uniform. Benefits: Oil, heat, ozone, and abrasion resistant, static conductive
Brand / Quality: Major Brand - High Quality Belt Length Approx: 4622mm = 182 inch Poly V Belt Section: L Section Belt Tensioner
Andrew Remington,
United Kingdom
Review added on 23/10/2019
I only ordered yesterday and my belts arrived today, now that’s what I call service.
Russell Addison,
United Kingdom
Review added on 02/01/2019
Perfect straight swap replacement belt. Quick delivery and when I selected free delivery too. Excellent.
Joseph Lamar,
United Kingdom
Review added on 18/01/2017
I bought these belts from you the other day and I was very impressed with every aspect of of the service you offer. Price, quality and quick delivery were all absolutely spot on. Thanks Simply I will certainly recommend you to my colleagues.
Jameson Jesus,
United Kingdom
Review added on 23/02/2016
Excellent service from this company, sales team helped me to identify the exact belt I need!
Write a Product Review
4622PL/1820L Major Brand Poly V Multiple Ribbed Belt 4622mm/182 inch Length with 6 Ribs
