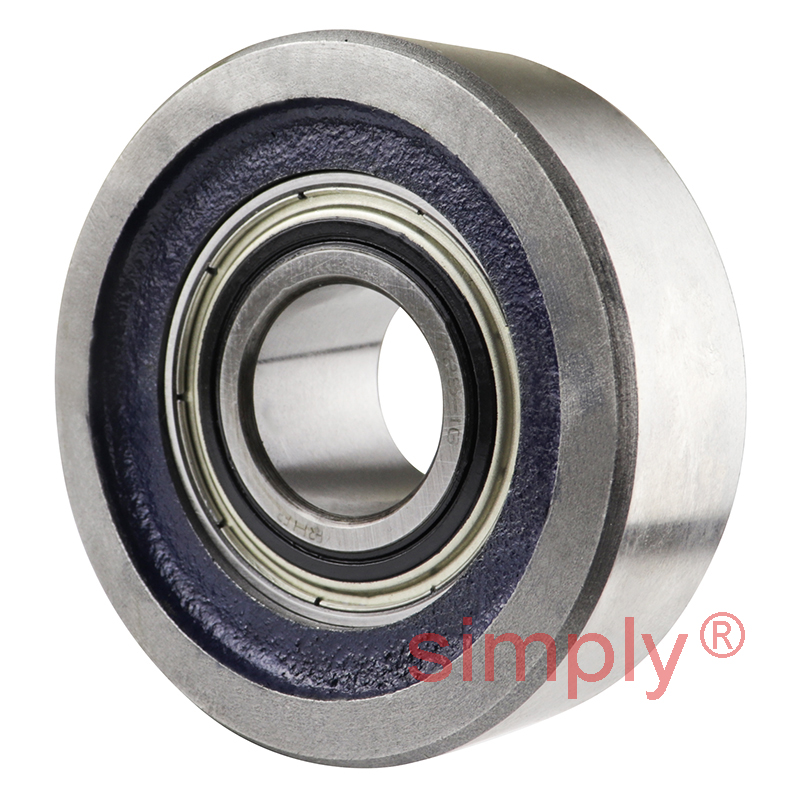

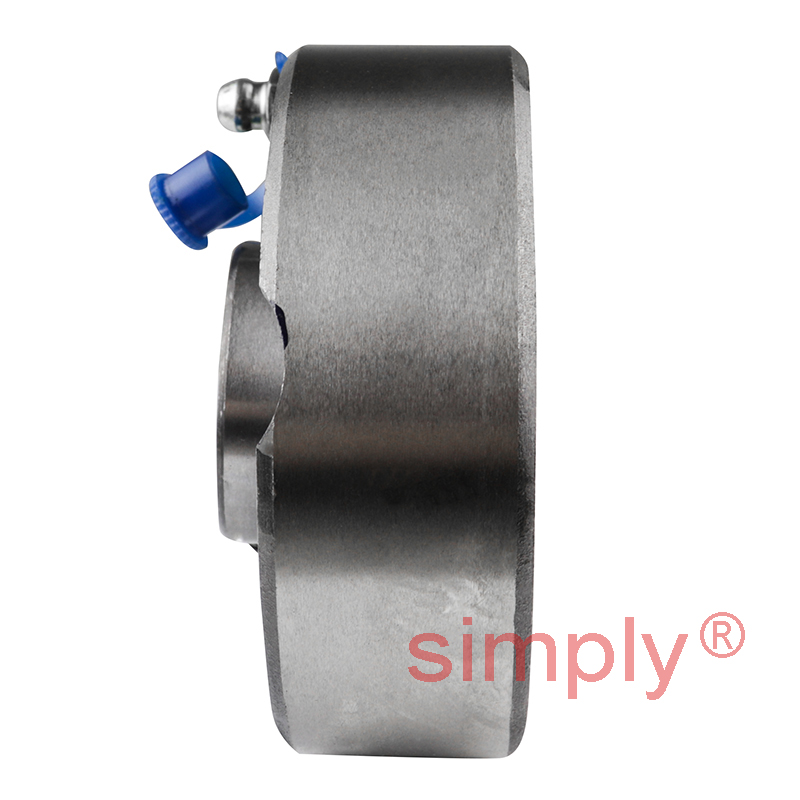

RHP SLC1A Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
£40.40
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £35.96 each |
| 20+ | £33.94 each |
| 30+ | £33.54 each |
| 40+ | £33.13 each |
| 50+ | £32.73 each |
| 75+ | £32.32 each |
| 100+ | £30.30 each |
| 200+ | £29.90 each |
| 250+ | £29.50 each |
| 500+ | £29.09 each |
| 1000+ | £28.28 each |
In Stock
| Bore | = | 1 inch |
| L | = | 3.126 inch |
| A | = | 1.031 inch |
| A1 | = | 1.297 inch |
| A2 | = | 1.438 inch |
| A3 | = | 1.577 inch |
| B | = | 1.343 inch |
| B1 | = | 1077 inch |
| B2 | = | 1.217 inch |
| B3 | = | 1.748 inch |
| s | = | 0.564 inch |
| s1 | = | 0.298 inch |
| s2 | = | 0.689 inch |
| d1 | = | 1.339 inch |
| d2 | = | 1.5 inch |
| Dynamic load Cr | = | 14000 N |
| Static load Cor | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.8 kg |
| Insert | = | 1225-1AG Click Here |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
