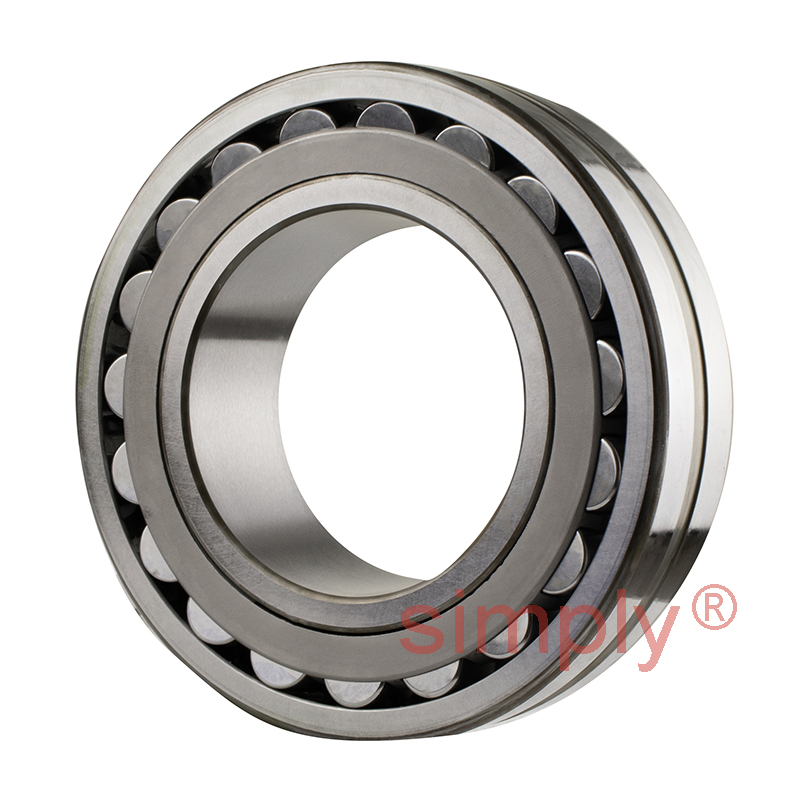

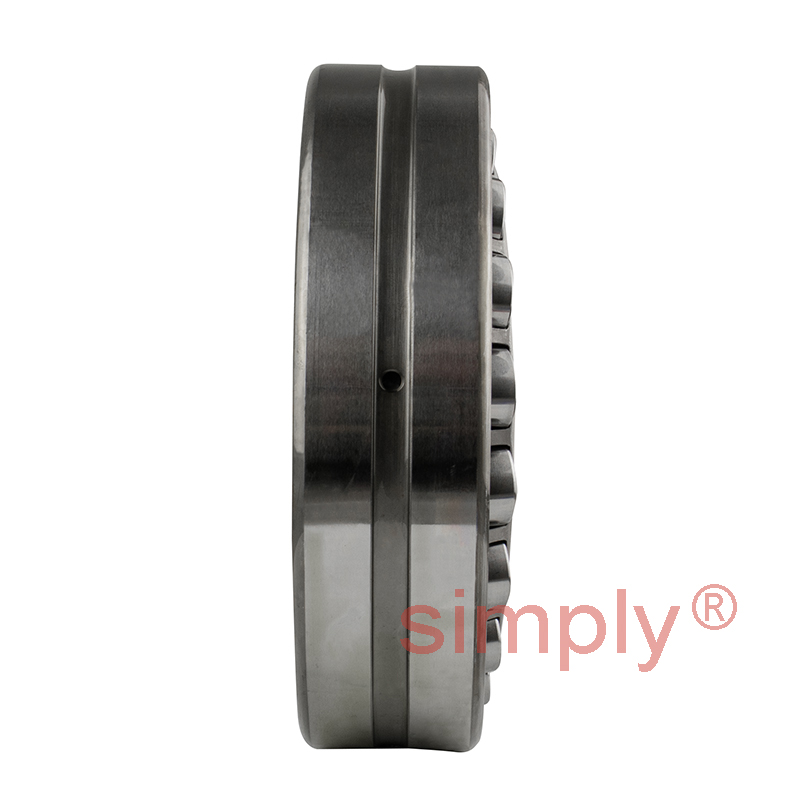

SKF 22213EKC3 Spherical Roller Bearing with Taper Bore 65x120x31mm
Equivalent to: 22213KC3
What is C3? [Click Here]
£116.44
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £103.63 each |
| 4+ | £97.81 each |
| 9+ | £96.64 each |
| 19+ | £95.48 each |
| 29+ | £94.31 each |
| 39+ | £93.15 each |
| 49+ | £87.33 each |
| 59+ | £86.16 each |
| 249+ | £85.00 each |
| 499+ | £83.83 each |
| 999+ | £81.50 each |
In Stock
| Dimensions | ||
| d | = | 65mm |
| D | = | 120mm |
| B | = | 31mm |
| D1 | = | 106mm |
| d2 | = | 77.6mm |
| r1r2 min | = | 1.5mm |
| b | = | 5.5mm |
| K | = | 3mm |
| da min | = | 74mm |
| Da max | = | 111mm |
| ra max | = | 1.5mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 193 kN |
| Static load Co | = | 216 kN |
| Fatigue load limit Pu | = | 24 kN |
| Reference speed | = | 5000 rpm |
| Limiting speed | = | 7000 rpm |
| Weight | = | 1.55 kg |
| Factors | ||
| Calculation factor e | = | 0.24 |
| Calculation factor Y1 | = | 2.8 |
| Calculation factor Y2 | = | 4.2 |
| Calculation factor Y0 | = | 2.8 |
| Matching Adaptor Sleeves | ||
| Sleeve No. | = | H313 |
| Sleeve No. | = | HA313 |
| Sleeve No. | = | HE313 |
| Sleeve No. | = | HS313 |
| Matching Withdrawal Sleeves | ||
| Sleeve No. | = | AH313G |
