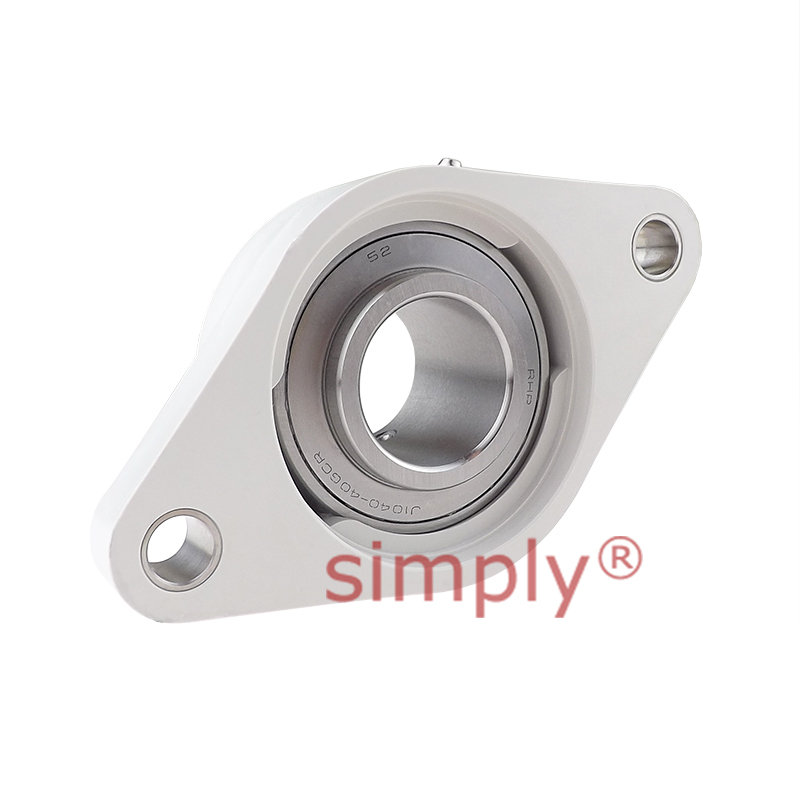

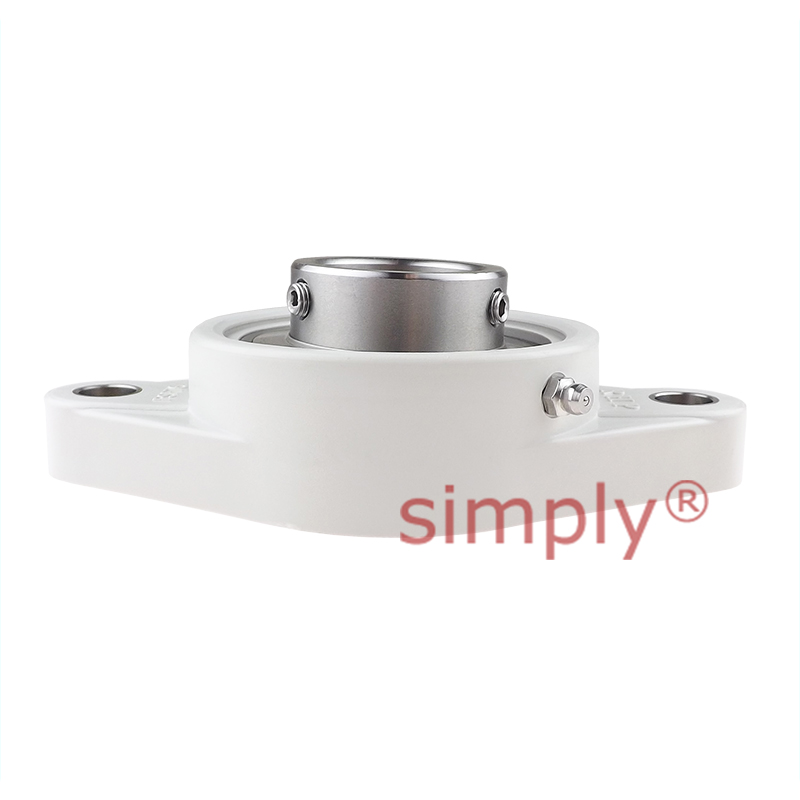

RHP PSFT40CR Thermo Plastic Two Bolt Oval Flange Housing with 40mm Bore Stainless Insert
£132.69
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £118.09 each |
| 20+ | £111.46 each |
| 30+ | £110.13 each |
| 40+ | £108.80 each |
| 50+ | £107.48 each |
| 75+ | £106.15 each |
| 100+ | £99.51 each |
In Stock

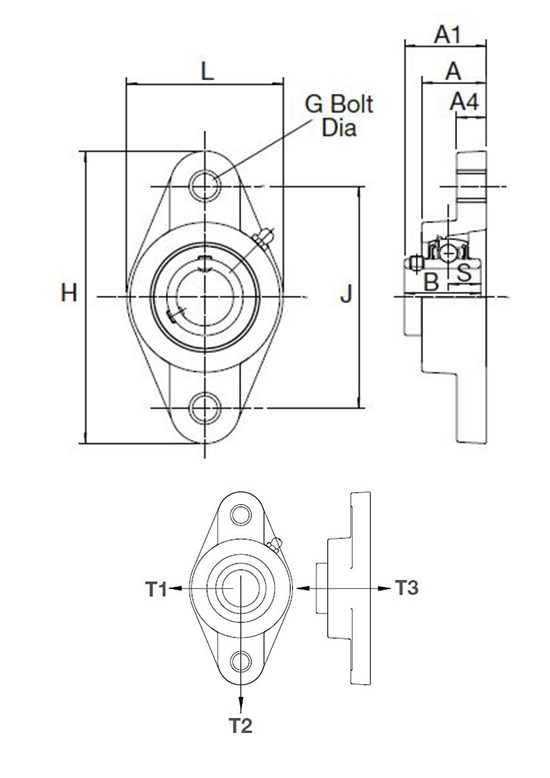

| L | = | 100.1mm |
| H | = | 175.3mm |
| J | = | 144mm |
| G | = | M12 |
| A | = | 37.5mm |
| A1 | = | 51.7mm |
| A4 | = | 20mm |
| B | = | 49.2mm |
| 17.5 | = | 19mm |
| Approx weight kg | = | 0.89 kg |
| T1 Intermittent Loading | = | 9000 N |
| T1 Continuous Loading | = | 4500 N |
| T1 Cyclical Loading | = | 2500 N |
| T2 Intermittent Loading | = | 3900 N |
| T2 Continuous Loading | = | 2000 N |
| T2 Cyclical Loading | = | 1100 N |
| T3 Intermittent Loading | = | 3300 N |
| T3 Continuous Loading | = | 1600 N |
| T3 Cyclical Loading | = | 900 N |
| Max. Fixing Bolt Torque | = | 40 Nm |
