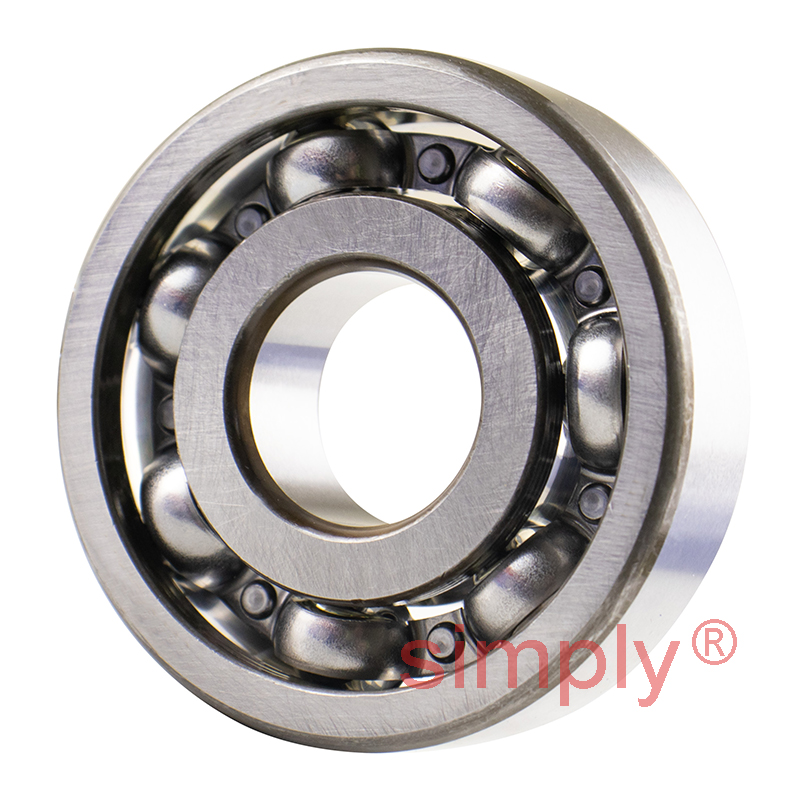

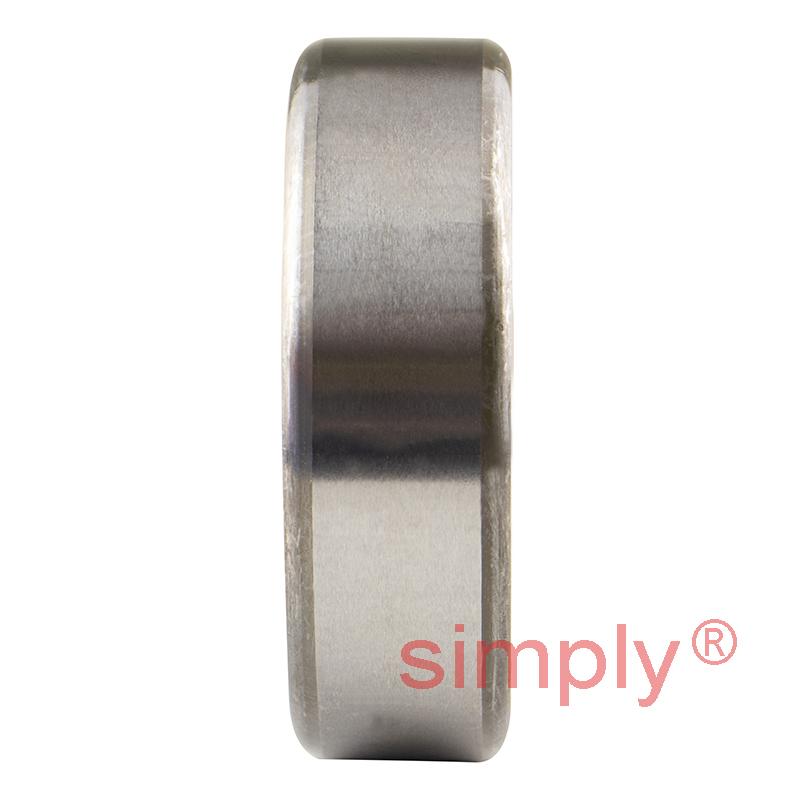

Major Branded 6303C4 Open Deep Groove Ball Bearing 17x47x14mm
Equivalent to: 6303 6303C4
What is C4? [Click Here]
£8.72
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £7.76 each |
| 19+ | £7.32 each |
| 29+ | £7.24 each |
| 39+ | £7.15 each |
| 49+ | £7.06 each |
| 74+ | £6.97 each |
| 99+ | £6.54 each |
In Stock
| d | = | 17mm |
| D | = | 47mm |
| B | = | 14mm |
| Dynamic load C | = | 14.3 kN |
| Static load Co | = | 6.55 kN |
| Fatigue load limit Pu | = | 0.275 kN |
| Reference speed | = | 34000 rpm |
| Limiting speed | = | 22000 rpm |
| Mass | = | 0.12 kg |
| d1 | = | 26.5mm |
| D1 | = | 37.4mm |
| D2 | = | 39.7mm |
| r1r2 min | = | 1mm |
| da min | = | 22.6mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.03 |
| Calc factor | = | 12 |
