Wrapped Steel Flanged Bushes
FMB1509D Flanged Wrapped Steel Plain Backed Bush 15x17x9mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 15mm
Outside Diameter: 17mm
Length: 9mm
FMB1217D Flanged Wrapped Steel Plain Backed Bush 12x14x17mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 12mm
Outside Diameter: 14mm
Length: 17mm
FMB0604DU Flanged Wrapped Steel Plain Backed Bush 6x8x4mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 6mm
Outside Diameter: 8mm
Length: 4mm
FMB08055DU Flanged Wrapped Steel Plain Backed Bush 8x10x5.5mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 8mm
Outside Diameter: 10mm
Length: 5.5mm
FMB1207DU Flanged Wrapped Steel Plain Backed Bush 12x14x7mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 12mm
Outside Diameter: 14mm
Length: 7mm
FMB1612DU Flanged Wrapped Steel Plain Backed Bush 16x18x12mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 16mm
Outside Diameter: 18mm
Length: 12mm
FMB20165DU Flanged Wrapped Steel Plain Backed Bush 20x23x16.5mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 20mm
Outside Diameter: 23mm
Length: 16.5mm

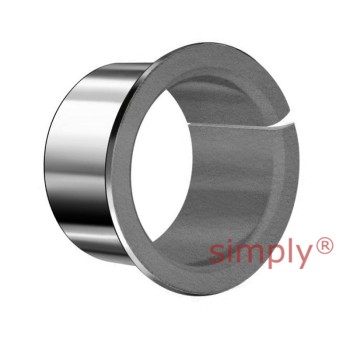

SKF PCMF060804E Imperial Flanged Bush Bearing 0.236x0.315x0.157 inch
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 6mm = 0.236 inch
Outside Diameter: 8mm = 0.315 inch
Length: 4mm = 0.157 inch
SKF PCMF060804E Metric Flanged Bush Bearing 6x8x4mm
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 6mm
Outside Diameter: 8mm
Length: 4mm
SKF PCMF060808E Imperial Flanged Bush Bearing 0.236x0.315x0.315 inch
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 6mm = 0.236 inch
Outside Diameter: 8mm = 0.315 inch
Length: 8mm = 0.315 inch
SKF PCMF060808E Metric Flanged Bush Bearing 6x8x8mm
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 6mm
Outside Diameter: 8mm
Length: 8mm
SKF PCMF081005.5E Imperial Flanged Bush Bearing 0.315x0.394x0.217 inch
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 8mm = 0.315 inch
Outside Diameter: 10mm = 0.394 inch
Length: 5.5mm = 0.217 inch
SKF PCMF081005.5E Metric Flanged Bush Bearing 8x10x5.5mm
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 8mm
Outside Diameter: 10mm
Length: 5.5mm
SKF PCMF081007.5E Imperial Flanged Bush Bearing 0.315x0.394x0.295 inch
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 8mm = 0.315 inch
Outside Diameter: 10mm = 0.394 inch
Length: 7.5mm = 0.295 inch
SKF PCMF081007.5E Metric Flanged Bush Bearing 8x10x7.5mm
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 8mm
Outside Diameter: 10mm
Length: 7.5mm
SKF PCMF081009.5E Imperial Flanged Bush Bearing 0.315x0.394x0.374 inch
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 8mm = 0.315 inch
Outside Diameter: 10mm = 0.394 inch
Length: 9.5mm = 0.374 inch
SKF PCMF081009.5E Metric Flanged Bush Bearing 8x10x9.5mm
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 8mm
Outside Diameter: 10mm
Length: 9.5mm
SKF PCMF101207E Imperial Flanged Bush Bearing 0.394x0.472x0.276 inch
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 10mm = 0.394 inch
Outside Diameter: 12mm = 0.472 inch
Length: 7mm = 0.276 inch
SKF PCMF101207E Metric Flanged Bush Bearing 10x12x7mm
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 10mm
Outside Diameter: 12mm
Length: 7mm
SKF PCMF151709E Imperial Flanged Bush Bearing 0.591x0.669x0.354 inch
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 15mm = 0.591 inch
Outside Diameter: 17mm = 0.669 inch
Length: 9mm = 0.354 inch
SKF PCMF151709E Metric Flanged Bush Bearing 15x17x9mm
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 15mm
Outside Diameter: 17mm
Length: 9mm
SKF PCMF161812E Imperial Flanged Bush Bearing 0.63x0.709x0.472 inch
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 16mm = 0.63 inch
Outside Diameter: 18mm = 0.709 inch
Length: 12mm = 0.472 inch
SKF PCMF161812E Metric Flanged Bush Bearing 16x18x12mm
PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. [show more]...
Inside Diameter: 16mm
Outside Diameter: 18mm
Length: 12mm
FMB0608DU Flanged Wrapped Steel Plain Backed Bush 6x8x8mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 6mm
Outside Diameter: 8mm
Length: 8mm
FMB1007DU Flanged Wrapped Steel Plain Backed Bush 10x12x7mm
Flanged Plain Bearings: Constructed of 3 layers these maintenance free flanged bushes offer a low cost low friction solution. Comprising of a flanged steel backing, a bronze layer and a [show more]... |
Inside Diameter: 10mm
Outside Diameter: 12mm
Length: 7mm
Flanged Wrapped Steel Bushes
When you're searching for the perfect size or type of steel bushes for your requirements, here at Simply Bearings we can help you with all your requirements. We have an extensive stock of products, and as one of the leading online suppliers of bearings, we understand your needs and how to select the right part. Our website is quick and easy to navigate, making ordering simple and hassle-free, so you can get back to work as soon as possible.
Our range of wrapped steel bushes includes flanged wrapped steel bushes, providing you with a one-stop shop for everything bearing-related. We are a specialist supplier, so you can rest assured that you're buying from one of the best in the industry, and we also provide a cost-effective pricing structure, including great discounts for ordering in bulk.
The flanged wrapped steel plain backed bushes that we have available at Simply Bearings are manufactured from three individual layers and give you a maintenance-free solution that also produces a low amount of friction. These bushes are made up of a flanged backing that is produced from steel, as well as a layer of bronze and a thick sheet of PTFE.
When these flanged wrapped steel bushes are made, the pores in the bronze layer are filled up with PTFE, before a further layer of the material is put on top. This gives the inside of the flanged wrapped steel plain backed bushes added protection from corrosion, and a coating of tin protects the ends and outer surface.
With the use of flanged wrapped steel bushes you receive a strong compressive strength as well as a high degree of thermal conductivity. These properties make them ideal for use in many different settings, including agricultural machinery and construction equipment, where they will experience a large amount of wear and tear.
