Gang Disc Harrow Square Bore Bearings
Displaying 1 to 25 (of 45 products)
Not Rated Yet
Budget W208K3 Special Type Gang Disc Harrow Parallel Outer Square Bore Standard Non-Relubricatable Bearing
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 29.97mm
Outside Diameter: 80mm
Width: 42.88mm
Clearance: * Standard
Inside Diameter: 29.97mm
Outside Diameter: 80mm
Width: 42.88mm
Clearance: * Standard
Not Rated Yet
Budget W208PP6 Gang Disc Harrow Parallel Outer Square Bore Standard Non-Relubricatable Bearing 1.03x3.1496x1.4375 inch
Equivalent to: DC208TT6, 16SB5-208E3, 2/DF240/8
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 26.16mm = 1.03 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 26.16mm = 1.03 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
Major Brand W208PP8 Gang Disc Harrow Parallel Outer Square Bore Standard Non-Relubricatable Bearing 1.18x3.1496x1.4375 inch
Equivalent to: DC208TT8, 18SB2-2E08E3, 6AS09-11/8
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
Major Brand W208PPB6 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 1.03x3.1496x1.4375 inch
Equivalent to: DS208TT6, 16S5-208E3, 1AS08-1, 2/DNF240/8
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: Major Brand - High Quality
Inside Diameter: 26.16mm = 1.03 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 26.16mm = 1.03 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (4 Reviews)

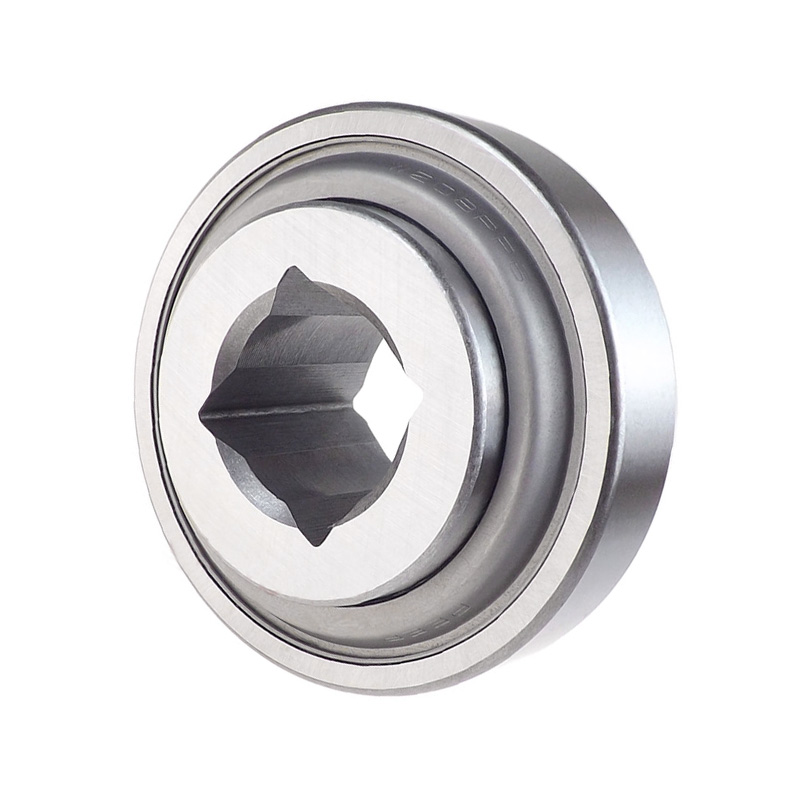

Major Brand GW208PPB5 Gang Disc Harrow Spherical Outer Square Bore Standard Relubricatable Bearing 1.18x3.1496x1.4375 inch - Allow 2-3 Days
Equivalent to: DS208TTR21, 18SG7-2E08E3, 1AS08-15/32D1, 1/PDNF240/9G
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
Major Brand GW208PPB6 Gang Disc Harrow Spherical Outer Square Bore Standard Relubricatable Bearing 1.03x3.1496x1.438 inch - Allow 2-3 Days
Equivalent to: DS208TTR6, 16SG7-208E3
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 26.16mm = 1.03 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 26.16mm = 1.03 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (3 Reviews)
Major Brand GW208PPB8 Gang Disc Harrow Spherical Outer Square Bore Standard Relubricatable Bearing 1.18x3.1496x1.4375 inch - Allow 2-3 Days
Equivalent to: DS208TTR8, 18SG2-2E08E3, 2AS08-11/8D1, PDNF240/9G
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
W208PPB8 1.18 inch Square Bore Spherical Outer Disc Harrow Bearing 1.18x3.1496x1.437 inch
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (1 Reviews)
Major Brand GW208PP17 Gang Disc Harrow Parallel Outer Square Bore Standard Relubricatable Bearing 1.18x3.3755x1.4375 inch
Equivalent to: DC208TTR17
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 85.75mm = 3.375 (3-3/8) inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 85.75mm = 3.375 (3-3/8) inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
Major Brand W208PPB12 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 1.18x3.376x1.438 inch
Equivalent to: DS208TT12, 18S4-2E08E3, 4AS08-11/8
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 85.75mm = 3.375 (3-3/8) inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 85.75mm = 3.375 (3-3/8) inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (4 Reviews)
W211PPB3 1.53 inch Square Bore Spherical Outer Disc Harrow Bearing 1.53x3.937x1.313 inch
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 38.89mm = 1.531 (1-17/32) inch
Outside Diameter: 100mm = 3.937 (3-15/16) inch
Width: 33.33mm = 1.312 (1-5/16) inch
Inside Diameter: 38.89mm = 1.531 (1-17/32) inch
Outside Diameter: 100mm = 3.937 (3-15/16) inch
Width: 33.33mm = 1.312 (1-5/16) inch
Average Rating (4 Reviews)
W209PPB5 1.29 inch Square Bore Spherical Outer Disc Harrow Bearing 1.29x3.346x1.437 inch
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 32.77mm = 1.29 inch
Outside Diameter: 85mm = 3.346 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 32.77mm = 1.29 inch
Outside Diameter: 85mm = 3.346 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (3 Reviews)
W211PPB6 1.53 inch Square Bore Spherical Outer Disc Harrow Bearing 1.53x4.0772x1.75 inch
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 38.89mm = 1.531 (1-17/32) inch
Outside Diameter: 103.56mm = 4.077 inch
Width: 44.45mm = 1.75 (1-3/4) inch
Inside Diameter: 38.89mm = 1.531 (1-17/32) inch
Outside Diameter: 103.56mm = 4.077 inch
Width: 44.45mm = 1.75 (1-3/4) inch
Average Rating (3 Reviews)
Major Brand W211PPB3 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 1.531x3.937x1.3125 inch - Allow 2-3 Days
Equivalent to: DS211TT3, 24S3-211E3, 3AS11-11/2
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 38.89mm = 1.531 (1-17/32) inch
Outside Diameter: 100mm = 3.937 (3-15/16) inch
Width: 33.33mm = 1.312 (1-5/16) inch
Inside Diameter: 38.89mm = 1.531 (1-17/32) inch
Outside Diameter: 100mm = 3.937 (3-15/16) inch
Width: 33.33mm = 1.312 (1-5/16) inch
Average Rating (2 Reviews)

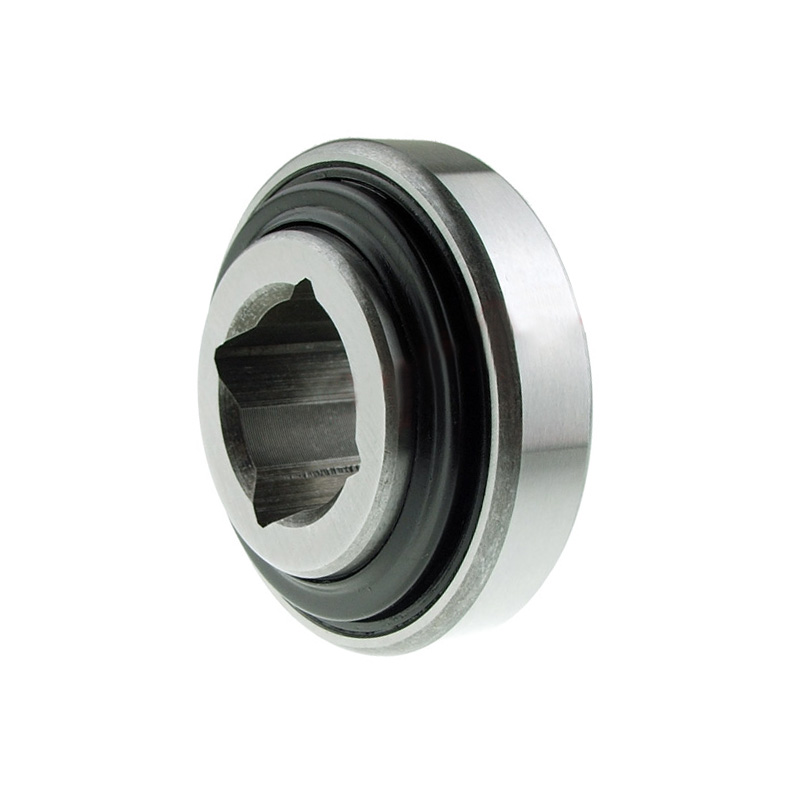

W210PP4 1.18 inch Square Bore Parallel Outer Disc Harrow Bearing 1.18x3.5433x1.189 inch - Allow 2-3 Days
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a parallel outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 90mm = 3.543 inch
Width: 30.18mm = 1.188 (1-3/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 90mm = 3.543 inch
Width: 30.18mm = 1.188 (1-3/16) inch
Not Rated Yet
Budget GW208PPB5 Gang Disc Harrow Spherical Outer Square Bore Standard Relubricatable Bearing 1.18x3.1496x1.4375 inch
Equivalent to: DS208TTR21, 18SG7-2E08E3, 1AS08-15/32D1, 1/PDNF240/9G
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (1 Reviews)
Major Brand W208PPB13 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 0.905x3.1496x1.438 inch
Equivalent to: DS208TT13, 14S5-208E3, 1AS08-7/8, 2/DNF240/7
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 22.98mm = 0.905 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 22.98mm = 0.905 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
Major Brand W209PPB7 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 1.29x3.376x1.4375 inch
Equivalent to: DS209TT7, 20S4-209E3
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 32.77mm = 1.29 inch
Outside Diameter: 85.75mm = 3.375 (3-3/8) inch
Width: 36.51mm = 1.437 (1-7/16) inch
Inside Diameter: 32.77mm = 1.29 inch
Outside Diameter: 85.75mm = 3.375 (3-3/8) inch
Width: 36.51mm = 1.437 (1-7/16) inch
Average Rating (3 Reviews)
W208PP8 1.18 inch Square Bore Parallel Outer Disc Harrow Bearing 1.18x3.1496x1.437 inch
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a parallel outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (3 Reviews)
W208PPB6 1.03 inch Square Bore Spherical Outer Disc Harrow Bearing 1.03x3.1496x1.437 inch
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 26.16mm = 1.03 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 26.16mm = 1.03 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (4 Reviews)
W208PP5 1.18 inch Square Bore Parallel Outer Disc Harrow Bearing 1.18x3.1496x1.437 inch
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
W208PPB12 1.18 inch Square Bore Spherical Outer Disc Harrow Bearing 1.18x3.376x1.437 inch
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 85.75mm = 3.375 (3-3/8) inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 85.75mm = 3.375 (3-3/8) inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
Major Brand W211PPB6 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 1.5311x4.077x1.75 inch
Equivalent to: DS211TT6, 4AS11-11/2
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: PEER - High Quality
Inside Diameter: 38.89mm = 1.531 (1-17/32) inch
Outside Diameter: 103.6mm = 4.077 inch
Width: 44.45mm = 1.75 (1-3/4) inch
Inside Diameter: 38.89mm = 1.531 (1-17/32) inch
Outside Diameter: 103.6mm = 4.077 inch
Width: 44.45mm = 1.75 (1-3/4) inch
Average Rating (4 Reviews)
W208PPB5 1.18 inch Square Bore Spherical Outer Disc Harrow Bearing 1.18x3.1496x1.437 inch
| Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a square bore, the [show more]... |
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 29.97mm = 1.18 inch
Outside Diameter: 80mm = 3.149 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Average Rating (2 Reviews)
Major Brand W209PPB5 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 1.29x3.3465x1.438 inch
Equivalent to: DS209TT5, 20S2-209E3, 2AS09-11/4
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang [show more]...
Brand / Quality: Major Brand - High Quality
Inside Diameter: 32.77mm = 1.29 inch
Outside Diameter: 85mm = 3.346 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Inside Diameter: 32.77mm = 1.29 inch
Outside Diameter: 85mm = 3.346 inch
Width: 36.53mm = 1.437 (1-7/16) inch
Gang Disc Harrow Square Bore Bearings
All agricultural machinery is subject to a tough working life, but some machines are prone to specific wear and tear issues. Disc harrows, for example, place particular stress on their bearings. This is because constant and unpredictable movement on the machine's gang shaft can generate a great deal of stress on the internal components of the support bearings. In addition, depending on the working depth, the bearings can come into contact with the crop and/or the soil, leading to extra wear and tear.
At Simply Bearings we stock gang disc harrow square bore bearings from leading manufacturer Peer which are directly interchangeable with industry-standard parts. They have the benefit of a static misalignment capability which accommodates imprecise mounting surfaces; in addition, dynamic misalignment capability helps to eliminate internal bearing damage. Add to this shock load protection thanks to the use of a high-grade ductile iron housing, plus an exclusive patented sealing system which eliminates the need for daily re-lubrication, and the net result is a product that gives you increased productivity and longer bearing life in everyday use.
Our gang disc harrow square bore bearings are available with inside diameters from 0.095 inches up to 2.3125 inches, and outside diameters from 3.1496 inches to 5.5118 inches, plus a range of different widths, so you should be able to find the right one for your requirements. If you need more information to be sure you're getting the right bearing, the Technical tab of each product page on our site has full metric and imperial dimensions - including tolerances - and a detailed drawing. If you still need assistance ordering, just give our friendly customer services team a call and they'll be happy to help you.
All Simply Bearings orders include free second-class post, but we know that agricultural machinery often needs to be repaired fast, so you can opt for first-class or courier shipping and the cost will be calculated for you on the website. Get your order in before 4pm and it will be dispatched the same day too.
Simply Bearings is an ISO 9001 certified company, and all orders are covered by our 90-day, no-quibble, money-back guarantee, so you can order from us with complete confidence. We're happy to supply both large and small orders, and price breaks are available for bigger quantities. Export orders are no problem either, with low-cost international shipping available on request. Feel free to get in touch if you have any queries.
