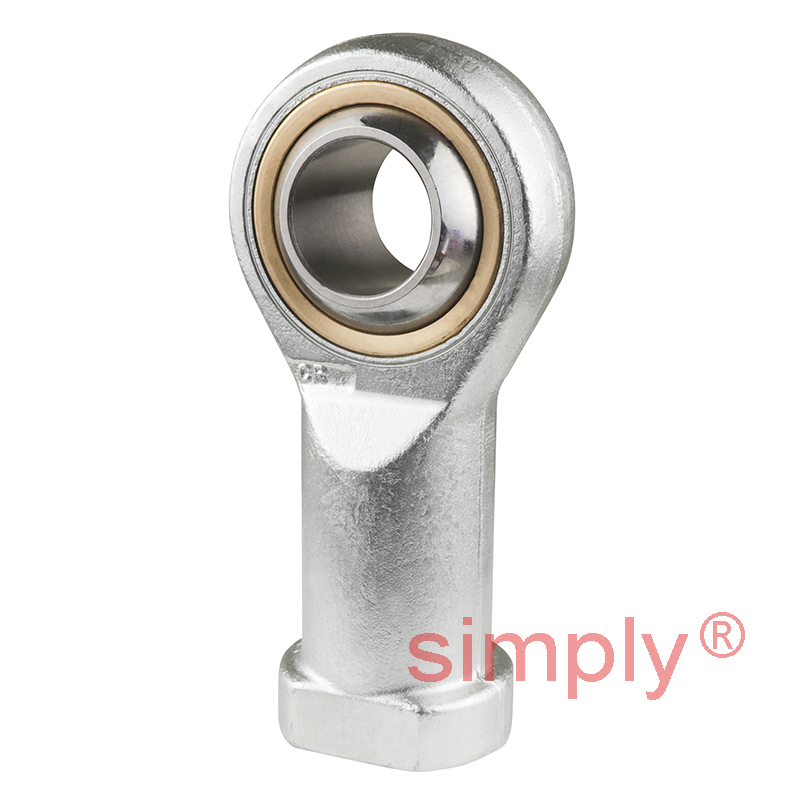

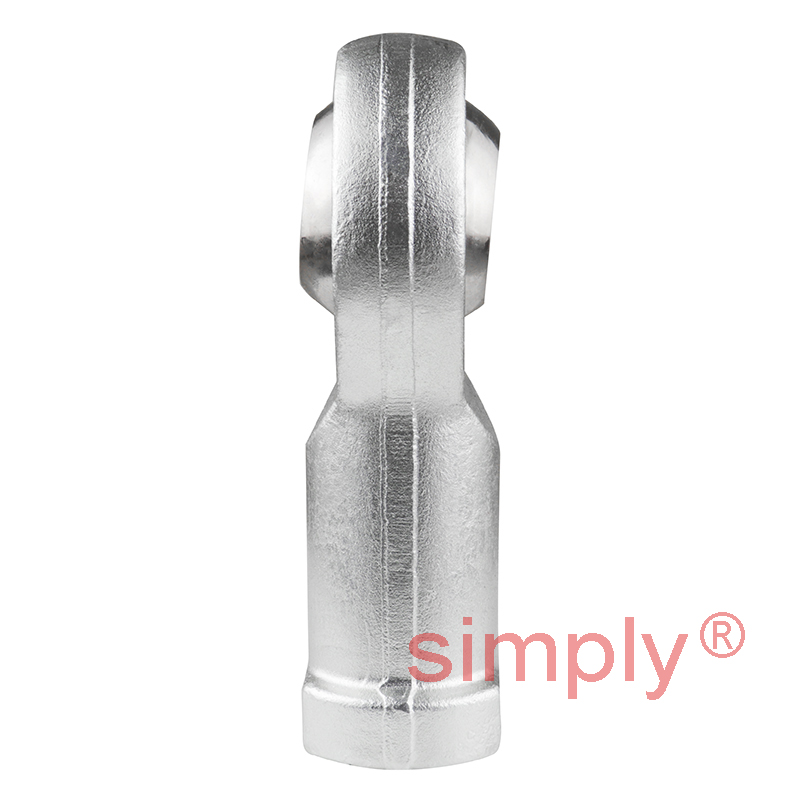

SKF SIKAC30M/VZ019 Right Hand Steel / Bronze Lined Plain Female Rod End M27x2 Thread
£146.54
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £130.42 each |
| 19+ | £123.09 each |
| 29+ | £121.63 each |
| 39+ | £120.16 each |
| 49+ | £118.70 each |
| 74+ | £117.23 each |
| 99+ | £109.90 each |
| 199+ | £108.44 each |
| 249+ | £106.97 each |
| 499+ | £105.51 each |
| 999+ | £102.58 each |
In Stock
| d | = | 30mm |
| d2 max | = | 71mm |
| G 6H | = | M27x2 |
| B | = | 37mm |
| C1 max | = | 27mm |
| h1 | = | 110mm |
| a | = | 17deg |
| Dynamic load C | = | 64 kN |
| Static load Co | = | 69.5 kN |
| Weight | = | 1.15 kg |
| dk | = | 50.8mm |
| d3 | = | 40mm |
| d4 max | = | 52mm |
| l3 min | = | 45mm |
| l4 max | = | 146mm |
| l5 | = | 15mm |
| l7 min | = | 35mm |
| r1 min | = | 0.3mm |
| w h14 | = | 41mm |
