INA RATRY35XL Three Bolt Sheet Steel Triangle Housing with Grub Screw Insert 35mm Bore
£31.10
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £27.68 each |
| 9+ | £26.12 each |
| 19+ | £25.81 each |
| 29+ | £25.50 each |
| 39+ | £25.19 each |
| 49+ | £24.88 each |
| 59+ | £23.33 each |
In Stock

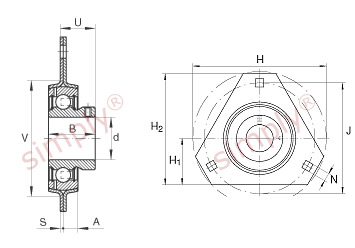

| d | = | 35mm |
| H | = | 122mm |
| B | = | 35mm |
| A | = | 9.5mm |
| H1 | = | 44.5mm |
| H2 | = | 105.6mm |
| J | = | 100mm |
| N | = | 10.5mm |
| S1 | = | 2.5mm |
| U | = | 28mm |
| V | = | 81mm |
| Mass | = | 0.47 kg |
| Load carrying capacity of housing Cor G | = | 6400 N |
| Basic dynamic load rating Cr | = | 27500 N |
| Basic static load rating Cor | = | 15300 N |
| Designation of housing | = | FLAN72-MSTR (2 X) |
| Designation of bearing | = | GAY35-XL-NPP-B |
