INA GRA40XL Four Bolt Sheet Steel Round Housing with Eccentric Collar Insert 40mm Bore
£46.64
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £41.51 each |
| 9+ | £39.18 each |
| 19+ | £38.71 each |
| 29+ | £38.24 each |
| 39+ | £37.78 each |
| 49+ | £37.31 each |
| 59+ | £34.98 each |
| 69+ | £34.51 each |
| 79+ | £34.05 each |
| 89+ | £33.58 each |
| 99+ | £32.65 each |
In Stock

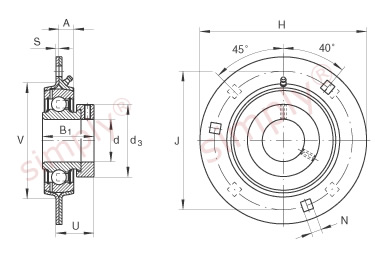

| d | = | 40mm |
| H | = | 147.5mm |
| B1 | = | 43.8mm |
| A | = | 10.3mm |
| d3 max | = | 58mm |
| J | = | 119mm |
| N | = | 13.5mm |
| Number of screw holes | = | 4 |
| S | = | 3.5mm |
| U | = | 36.2mm |
| V | = | 90 |
| Mass | = | 1.36 kg |
| Load carrying capacity of housing Cor G | = | 7700 N |
| Basic dynamic load rating Cr | = | 34500 N |
| Basic static load rating Cor | = | 19800 N |
| Designation of housing | = | FLAN80-MSB (1 X) / FLAN80-MSA (1 X) |
| Designation of bearing | = | GRAE40-XL-NPP-B |
