INA GRRY30VA Three Bolt Sheet Steel Round Housing with Grub Screw Insert and Anti-Corrosion Protection 30mm Bore
£130.71
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £116.33 each |
| 9+ | £109.79 each |
| 19+ | £108.49 each |
| 29+ | £107.18 each |
| 39+ | £105.87 each |
| 49+ | £104.57 each |
| 59+ | £98.03 each |
| 69+ | £96.72 each |
| 79+ | £95.42 each |
| 89+ | £94.11 each |
| 99+ | £91.50 each |
In Stock

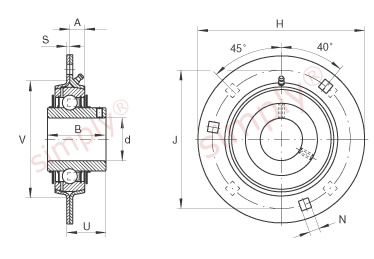

| d | = | 30mm |
| H | = | 112.7mm |
| B | = | 38.1mm |
| A | = | 9mm |
| J | = | 90.5mm |
| N | = | 10.5mm |
| Number of screw holes | = | 3 |
| S | = | 2.5mm |
| U | = | 24.7mm |
| V | = | 71 |
| Mass | = | 0.63 kg |
| Load carrying capacity of housing Cor G | = | 5000 N |
| Basic dynamic load rating Cr | = | 18700 N |
| Basic static load rating Cor | = | 10700 N |
| Designation of housing | = | FLAN62-MSB-VA (1 X) / FLAN62-MSA-VA (1 X) |
| Designation of bearing | = | SUC206 |
