2 Bolt Cast Iron Small Footprint Pillow Block Housings

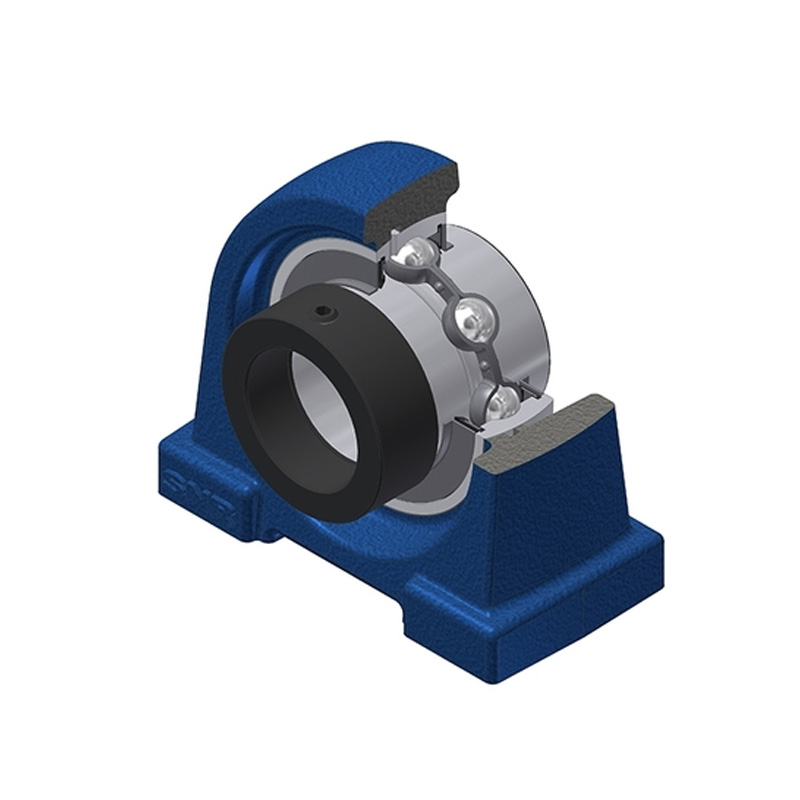

SNR EXPAE201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days
| EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 12mm
Style: EXPAE
Bolt Hole Centres: 50.8mm
M8 Set Screws
M8 Hex Bolts
M8 Washers
M8 Nuts
SNR EXPAE202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
| EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 15mm
Style: EXPAE
Bolt Hole Centres: 50.8mm
M8 Set Screws
M8 Hex Bolts
M8 Washers
M8 Nuts
SNR EXPAE203 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 17mm Bore - Allow 2-3 Days
| EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 17mm
Style: EXPAE
Bolt Hole Centres: 50.8mm
M8 Set Screws
M8 Hex Bolts
M8 Washers
M8 Nuts

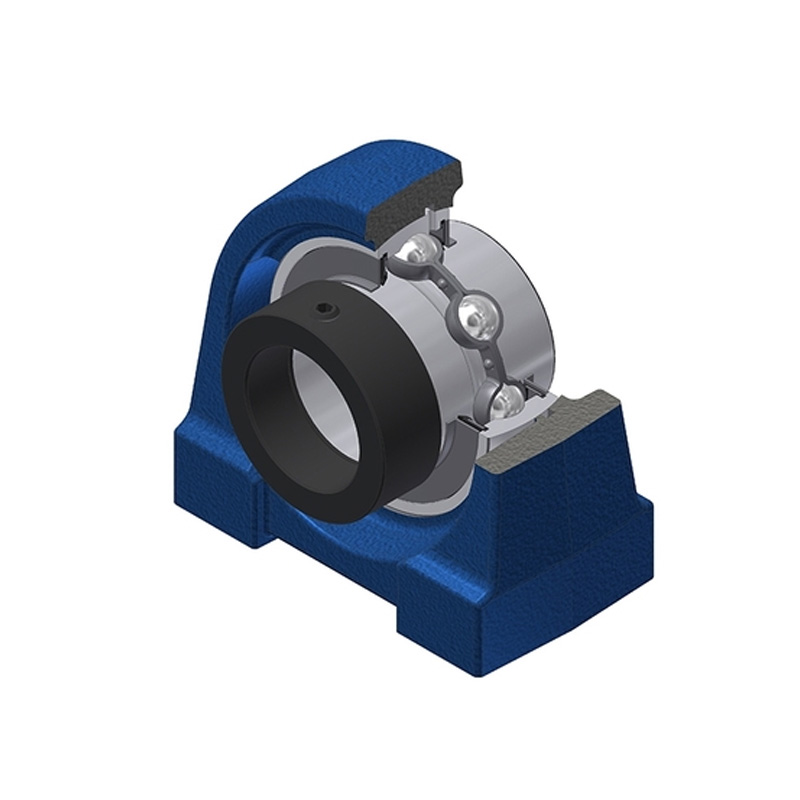

SNR EXPG201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days
| EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 12mm
Style: EXPG
Bolt Hole Centres: 49mm
M8 Set Screws
M8 Hex Bolts
M8 Washers
M8 Nuts
SNR EXPG202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
| EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 15mm
Style: EXPG
Bolt Hole Centres: 49mm
M8 Set Screws
M8 Hex Bolts
M8 Washers
M8 Nuts
SNR EXPG203 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 17mm Bore - Allow 2-3 Days
| EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 17mm
Style: EXPG
Bolt Hole Centres: 49mm
M8 Set Screws
M8 Hex Bolts
M8 Washers
M8 Nuts
SNR ESPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
| ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 25mm
Style: ESPA
Bolt Hole Centres: 56mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR ESPG205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
| ESPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 25mm
Style: ESPG
Bolt Hole Centres: 50mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR EXPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
Limited Stock
Inside Diameter: 20mm
Style: EXPA
Bolt Hole Centres: 52mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR EXPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
| EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 20mm
Style: EXPAE
Bolt Hole Centres: 50.8mm
M8 Set Screws
M8 Hex Bolts
M8 Washers
M8 Nuts
SNR EXPG204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
| EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 20mm
Style: EXPG
Bolt Hole Centres: 49mm
M8 Set Screws
M8 Hex Bolts
M8 Washers
M8 Nuts
SNR UCPAE205-14 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 7/8 inch Bore Insert - Allow 2-3 Days
| UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple [show more]... |
Limited Stock
Inside Diameter: 22.23mm = 0.875 (7/8) inch
Style: UCPAE
Bolt Hole Centres: 50.8mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR USPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
| USPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 25mm
Style: USPA
Bolt Hole Centres: 56mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
NTN M-UCUP202D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 15mm Bore Insert - Allow 2-3 Days
| UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 15mm
Style: UCUP
Bolt Hole Centres: 52mm
Grease Guns?
Grease?
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
NTN M-UCUP203D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 17mm Bore Insert - Allow 2-3 Days
| UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 17mm
Style: UCUP
Bolt Hole Centres: 52mm
Grease Guns?
Grease?
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
NTN UCUP201D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert - Allow 2-3 Days
| UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 12mm
Style: UCUP
Bolt Hole Centres: 52mm
Grease Guns?
Grease?
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR ESPAE206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
| ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 30mm
Style: ESPAE
Bolt Hole Centres: 76.2mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR UCPAE205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
| UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple [show more]... |
Limited Stock
Inside Diameter: 25mm
Style: UCPAE
Bolt Hole Centres: 50.8mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR EXPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
Limited Stock
Inside Diameter: 25mm
Style: EXPA
Bolt Hole Centres: 56mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR EXPG205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
| EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 25mm
Style: EXPG
Bolt Hole Centres: 50mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR UCPAE206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert - Allow 2-3 Days
| UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple [show more]... |
Limited Stock
Inside Diameter: 30mm
Style: UCPAE
Bolt Hole Centres: 76.2mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR USPG203 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 17mm Bore Insert - Allow 2-3 Days
| USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 17mm
Style: USPG
Bolt Hole Centres: 38mm
M6 Set Screws
M6 Hex Bolts
M6 Washers
M6 Nuts
SNR USPG206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
| USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 30mm
Style: USPG
Bolt Hole Centres: 60mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
SNR ESPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
| ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 30mm
Style: ESPA
Bolt Hole Centres: 66mm
M14 Set Screws
M14 Hex Bolts
M14 Washers
M14 Nuts
SNR ESPAE207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
| ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to [show more]... |
Limited Stock
Inside Diameter: 35mm
Style: ESPAE
Bolt Hole Centres: 82.6mm
M10 Set Screws
M10 Hex Bolts
M10 Washers
M10 Nuts
Small Footprint 2 Bolt Cast Iron Pillow Blocks Threaded Base
Those searching for cost-effective but high-quality bearing units should look at small footprint 2 bolt cast iron pillow blocks threaded base assemblies, which are available from Simply Bearings. We stock a wide range of these items in a number of different size specifications to fit the particular machinery or equipment you have. Our website is easy to search and order from, making it simple to find exactly what you need.
Our small footprint 2 bolt cast iron pillow block housings threaded base units are supplied as a fully sealed bearing insert. They are fitted into a threaded base housing and are provided with a grease nipple to make re-lubrication easy. These are inserted into position and can then be tightened against the shaft using the two grub screws that are provided.
The inserts within the small footprint 2 bolt cast iron pillow blocks threaded base sections can be removed as necessary and replaced with new inserts, which are available to order separately. This makes the small footprint housing units a cost-effective solution that can be repaired to maintain effectiveness and reliability so that the unit has a longer life without impacting on the productivity of the equipment.
The main benefit of the small footprint 2 bolt cast iron pillow block housings threaded base assembly units is that they don't take up a large amount of space, which makes them ideal for fitting into compact areas.
At Simply Bearings we work with some of the leading manufacturers in the industry and only supply products, including our small footprint 2 bolt cast iron pillow blocks threaded base units that are of the highest quality. We pride ourselves on the level of customer service that we provide to everyone who orders from us, whether you're a new customer requiring only one product or you've regularly been ordering from us for years.
Our products can be with you as soon as necessary and we have a free delivery service alongside next-day options, so you can choose the one that suits your budget and time-scale. We can also dispatch goods internationally and offer great-value rates to a number of different countries.
We hope that any of the items you order from us, including the small footprint 2 bolt cast iron pillow block housings threaded base units, are suitable for your intended purpose. However, if for any reason they are not correct or don't meet with the expected quality standard, we have a 100% 90-day refund guarantee. This allows you to return the products back to us for a full refund, as long as it's within the time period and meets with the terms of the guarantee.
