Grub Screw Full Width Steel Spherical Outer Inserts
RHP 1065-2-1/2G Spherical Outer Full Width Bearing Insert 2-1/2 inch Bore 120mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 63.5mm = 2.5 (2-1/2) inch
Outside Diameter: 120mm
Style: 1065
Insert Type Spherical Outer Diameter Full Width & Grub Screws
UC217-52 Imperial Bearing Insert with 3-1/4 inch Bore 150mm Outside Dia
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types [show more]... |
Inside Diameter: 82.55mm = 3.25 (3-1/4) inch
Outside Diameter: 150mm
Style: UC
Grease Guns?
Grease?

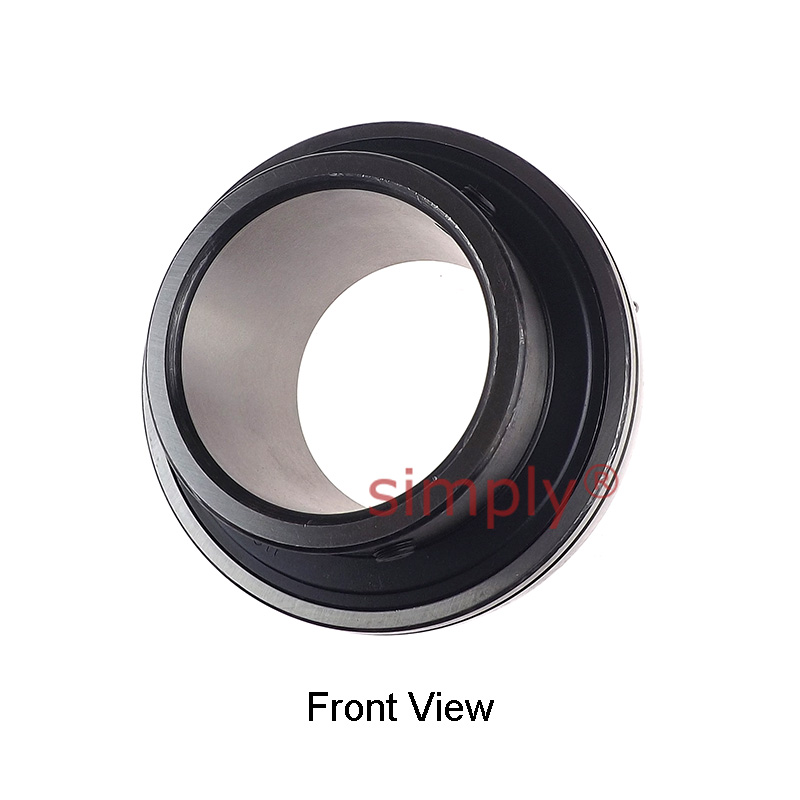

UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types [show more]... |
Inside Diameter: 90mm
Outside Diameter: 160mm
Style: UC
Grease Guns?
Grease?

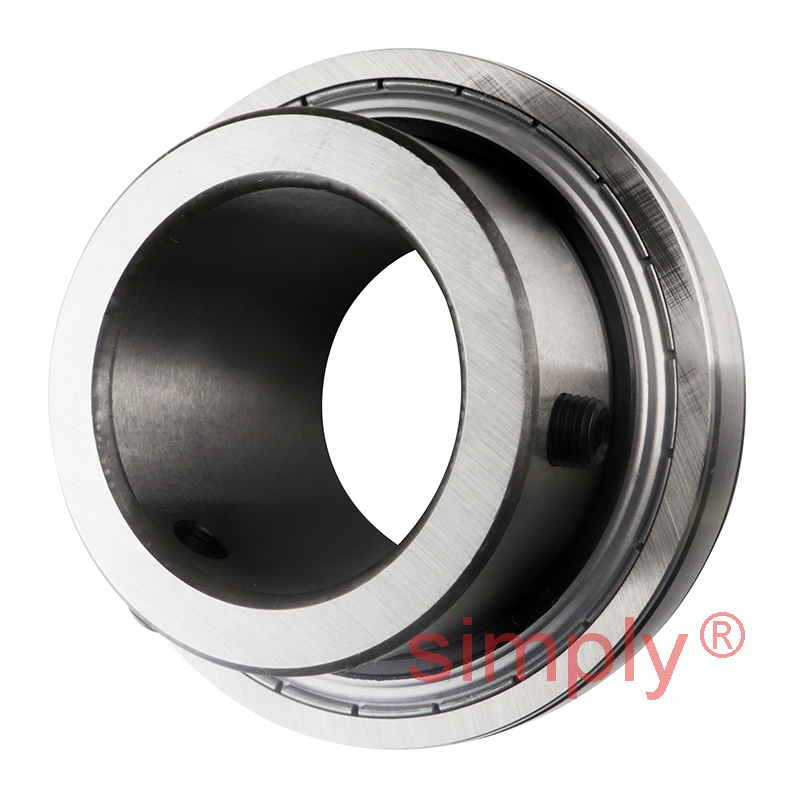

RHP 1070-2-1/2G Spherical Outer Full Width Bearing Insert 2-1/2 inch Bore 125mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 63.5mm = 2.5 (2-1/2) inch
Outside Diameter: 125mm
Style: 1070
Insert Type Spherical Outer Diameter Full Width & Grub Screws
RHP 1070-2-11/16G Spherical Outer Full Width Bearing Insert 2-11/16 inch Bore 125mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 68.26mm = 2.687 (2-11/16) inch
Outside Diameter: 125mm
Style: 1070
Insert Type Spherical Outer Diameter Full Width & Grub Screws
RHP 1070-2-7/16G Spherical Outer Full Width Bearing Insert 2-7/16 inch Bore 125mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 61.91mm = 2.437 (2-7/16) inch
Outside Diameter: 125mm
Style: 1070
Insert Type Spherical Outer Diameter Full Width & Grub Screws
SKF YAR215-215-2F Grub Screw Type Bearing Insert 2-15/16 inch Bore 130mm Outside Diameter
| SKF YAR-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is [show more]... |
Inside Diameter: 74.61mm = 2.937 (2-15/16) inch
Outside Diameter: 130mm
Style: YAR
Grease Guns?
Grease?
SKF YAR207-106-2RF/HV Grub Screw Type Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter
| SKF YAR-2 Y-bearings with Grub Screws: These bearings are made of stainless steel. They are suitable for applications where the direction of rotation is constant or alternating. YAR 2 [show more]... |
Inside Diameter: 34.93mm = 1.375 (1-3/8) inch
Outside Diameter: 72mm
Style: YAR
Grease Guns?
Grease?
SKF YAR2042FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 20x47x31mm
| SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg [show more]... |
Inside Diameter: 20mm
Temperature Range: High Temp
Need Oil Seals?
Need Viton Seals?
Grease Guns?
Grease?
UC317 Heavy Duty Metric Bearing Insert With 85mm Bore 180mm Outside Dia
| UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can [show more]... |
Inside Diameter: 85mm
Outside Diameter: 180mm
Style: UC
Grease Guns?
Grease?
UC217-55 Imperial Bearing Insert with 3-7/16 inch Bore 150mm Outside Dia
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types [show more]... |
Inside Diameter: 87.31mm = 3.437 (3-7/16) inch
Outside Diameter: 150mm
Style: UC
Grease Guns?
Grease?

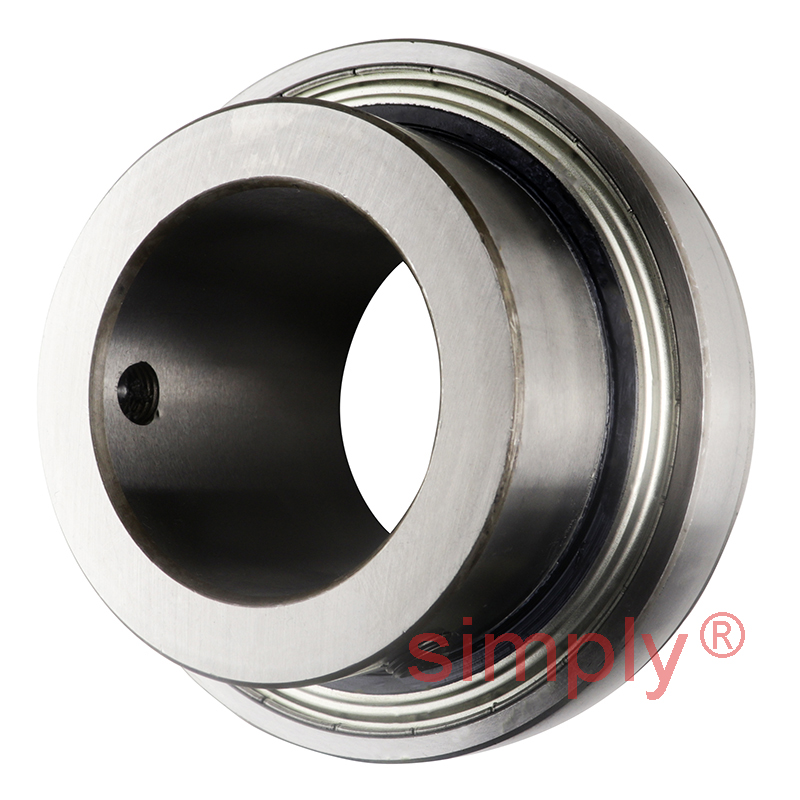

RHP 1075-65G Spherical Outer Full Width Bearing Insert 65mm Bore 130mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 65mm
Outside Diameter: 130mm
Style: 1075
Insert Type Spherical Outer Diameter Full Width & Grub Screws
RHP 1075-70G Spherical Outer Full Width Bearing Insert 70mm Bore 130mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 70mm
Outside Diameter: 130mm
Style: 1075
Insert Type Spherical Outer Diameter Full Width & Grub Screws
RHP 1075-75G Spherical Outer Full Width Bearing Insert 75mm Bore 130mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 75mm
Outside Diameter: 130mm
Style: 1075
Insert Type Spherical Outer Diameter Full Width & Grub Screws
INA GY1215KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 74.61x130x77.8mm
| INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of [show more]... |
Inside Diameter: 74.61mm = 2.937 (2-15/16) inch
Outside Diameter: 130mm
Width: 77.8mm
Challenge UC215 Metric Insert with Grub Screws with 75mm Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Extreme protection triple seals
- Ideal for outdoor / agricultural use
- Pre-greased / re-lubricatable
- Genuine Challenge brand
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to [show more]...
Inside Diameter: 75mm
Style: UC
Grease Guns?
Grease?
SKF YAR2061032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/16 inch shaft
| SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures [show more]... |
Inside Diameter: 30.16mm = 1.187 (1-3/16) inch
Temperature Range: High Temp
Need Oil Seals?
Need Viton Seals?
Grease Guns?
Grease?
Challenge UC215-48 Imperial Insert with Grub Screws with 3 inch Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Extreme protection triple seals
- Ideal for outdoor / agricultural use
- Pre-greased / re-lubricatable
- Genuine Challenge brand
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to [show more]...
Inside Diameter: 76.2mm = 3 inch
Style: UC
Grease Guns?
Grease?
SKF YAR2062FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 30x62x38.1mm
| SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg [show more]... |
Inside Diameter: 30mm
Temperature Range: High Temp
Need Oil Seals?
Need Viton Seals?
Grease Guns?
Grease?
SKF YAR214-207-2F Grub Screw Type Bearing Insert 2-7/16 inch Bore 125mm Outside Diameter
| SKF YAR-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is [show more]... |
Inside Diameter: 61.91mm = 2.437 (2-7/16) inch
Outside Diameter: 125mm
Style: YAR
Grease Guns?
Grease?
SKF YAR208-2RF/HV Grub Screw Bearing Insert with Food-Grade Grease 40mm Bore 80mm Outside Diameter
| SKF YAR-2 Y-bearings with Grub Screws: These bearings are made of stainless steel. They are suitable for applications where the direction of rotation is constant or alternating. YAR 2 [show more]... |
Inside Diameter: 40mm
Outside Diameter: 80mm
Style: YAR
Grease Guns?
Grease?
RHP 1075-2-11/16G Spherical Outer Full Width Bearing Insert 2-11/16 inch Bore 130mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 68.26mm = 2.687 (2-11/16) inch
Outside Diameter: 130mm
Style: 1075
Insert Type Spherical Outer Diameter Full Width & Grub Screws
RHP 1075-2-15/16G Spherical Outer Full Width Bearing Insert 2-15/16 inch Bore 130mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 74.61mm = 2.937 (2-15/16) inch
Outside Diameter: 130mm
Style: 1075
Insert Type Spherical Outer Diameter Full Width & Grub Screws
RHP 1075-2-3/4G Spherical Outer Full Width Bearing Insert 2-3/4 inch Bore 130mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 69.85mm = 2.75 (2-3/4) inch
Outside Diameter: 130mm
Style: 1075
Insert Type Spherical Outer Diameter Full Width & Grub Screws
RHP 1075-3G Spherical Outer Full Width Bearing Insert 3 inch Bore 130mm Outside Diameter
| RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These [show more]... |
Inside Diameter: 76.2mm = 3 inch
Outside Diameter: 130mm
Style: 1075
Insert Type Spherical Outer Diameter Full Width & Grub Screws
Grub Screw Full Width Steel Spherical Outer Inserts
Get to grips with our grub screw full width steel spherical outer inserts and browse the other competitively priced products on offer, here at Simply Bearings. As well as offering replacement parts like these, we also sell everything from sealants and adhesives to tools and cycling accessories.
What are grub screw full width steel spherical outer inserts?
Our standard inserts in this category come with a pair of grub screws, meaning that after fitting, it is possible to tighten these up so that they grip the surface of the shaft beneath. Unlike our flat back inserts, these are full width products which is worth bearing in mind, depending on the application for which they are intended.
If you need a replacement insert, then our site offers plenty of options. These models are advantageous not just because of their ability to operate across a range of temperatures and under differing loads, but also because they can be re-lubricated when required, to prolong their lifespan and prevent unnecessary wear and tear.
